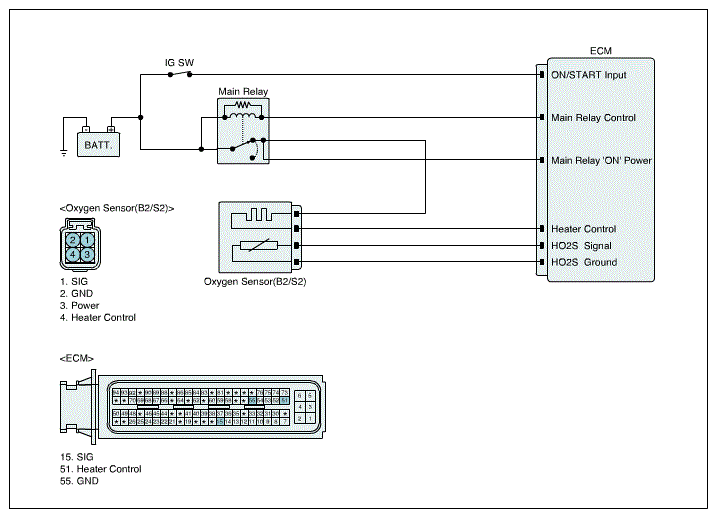

Home >> Hyundai >> 2012 >> Equus Ultimate >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 2) - 5.0L >> DTC P0160: O2 Sensor Circuit No Activity Detected (Bank 2/Sensor 2) >> General Information >> Diagnostic Circuit Diagram
