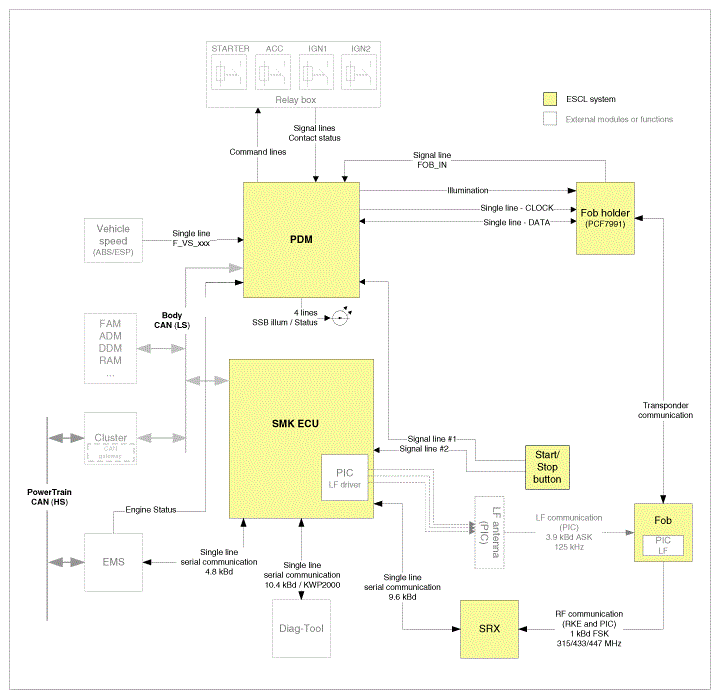

Home >> Hyundai >> 2012 >> Equus Ultimate >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Starter >> Button Engine Start System >> Button Engine Start System >> Schematic Diagrams >> Circuit Diagram
