I/P Junction Box RH Connector End View (I/P-RHB)

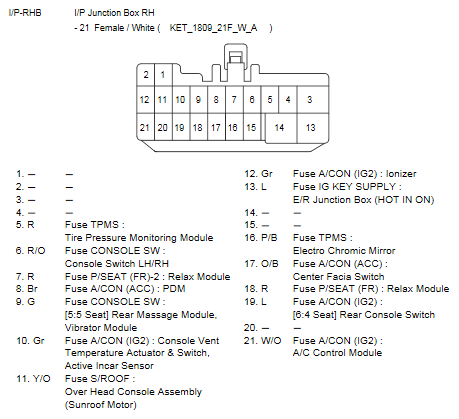

Fig 1: I/P Junction Box RH Connector End View (I/P-RHB)

G10733694

Courtesy of HYUNDAI MOTOR AMERICA
