Component Inspection

MFSW internal fault check
1. IGN "ON" & ENG "OFF"
2. After connect GDS, select "DTC Analysis" menu.
3. Substitute with a known - good MFSW.

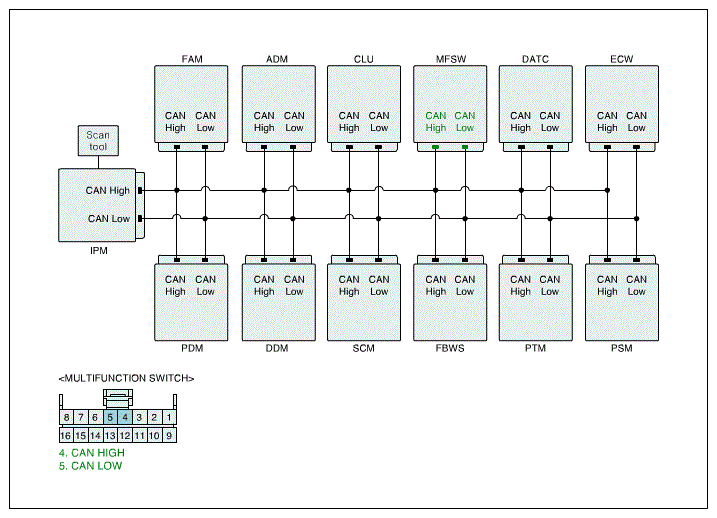

  Fig 1: CAN High And Low Light Multifunction Switch - Circuit Diagram
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is the DTC relevant to light switch able to be erased?
  YES

  Substitute with a known - good MFSW and check for proper operation. If the problem is corrected, replace the component and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  NO

  Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
