Component Inspection

Connect GDS to Data Link Connector (DLC).
Ignition "ON" & Engine "ON".
Select "Current Data" mode and monitor "Shift control solenoid valve A, B, C, D, E, F" parameter used select option.
Engine speed up to 7th speed of gear.

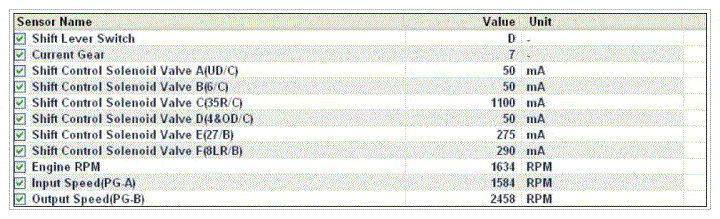

Fig 1: Display - Shift Control Solenoid Valve A, B, C, D, E And F Current Data
Courtesy of HYUNDAI MOTOR AMERICA
Are measured value within specification?
YES

Repair automatic transmission and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

Repair automatic transmission (valve body) and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
