Monitor GDS Data
- Connect GDS to data link connector (DLC)
- IG KEY "ON" or Engine "ON".

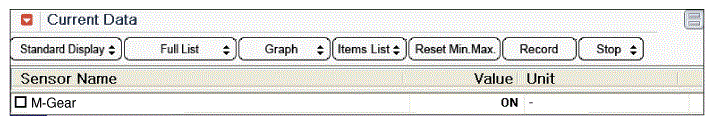

- Select Current Data "M-Gear" on the GDS
- Select "D" range and Drive vehicle, confirm output data of "M-Gear"
Specification: Operate ECO-P switch, the parameter changed ON/OFF
- Dos it changed normally?
YES
Fault is intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and ECU memory is not cleared yet. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
