SRS Control Module Connector End View (M71-A)

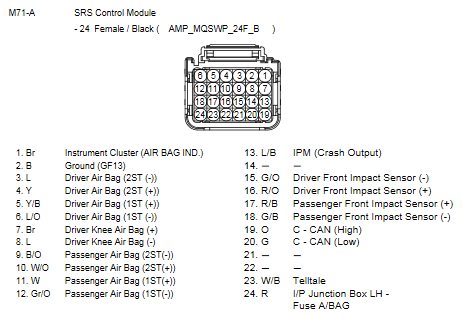

Fig 1: SRS Control Module Connector End View (M71-A)

G10733304

Courtesy of HYUNDAI MOTOR AMERICA
