Media Module Connector End View (M45-A)

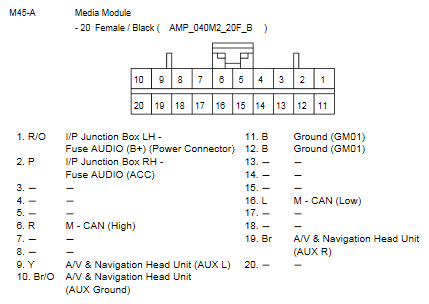

Fig 1: Media Module Connector End View (M45-A)

G10733286

Courtesy of HYUNDAI MOTOR AMERICA
