Component Inspection

Slide Motor Check
1. Connect scantool.
2. IG "ON" & ENG "OFF".
3. Select "Actuation Test" mode.
4. Execute "Seat Slide Motor (FORWARD, BACKWARD)" test.
  Specification : Turned to pressed direction

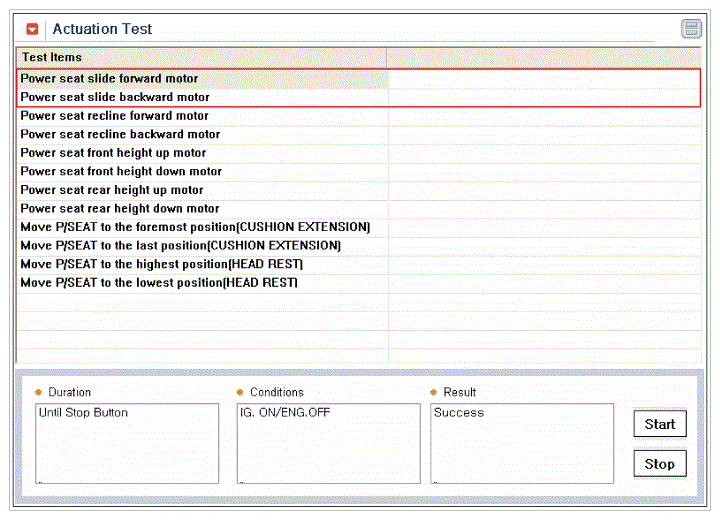

  Fig 1: Display - Power Seat Slide Motor Actuation Test
  Courtesy of HYUNDAI MOTOR AMERICA
5. Is motor working normal?
  YES
  - Go to "W/HARNESS INSPECTION " procedure.
  NO
  - Go to next procedure.
Check switch
1. IG "ON" & ENG "OFF".
2. After connect GDS, select "Current Date" menu.
3. Check whether "Slide Switch" is turned to "ON" when the control switch is pressed. (Forward, Backward)
  Specification : Service data is switched. (ON ↔ OFF)

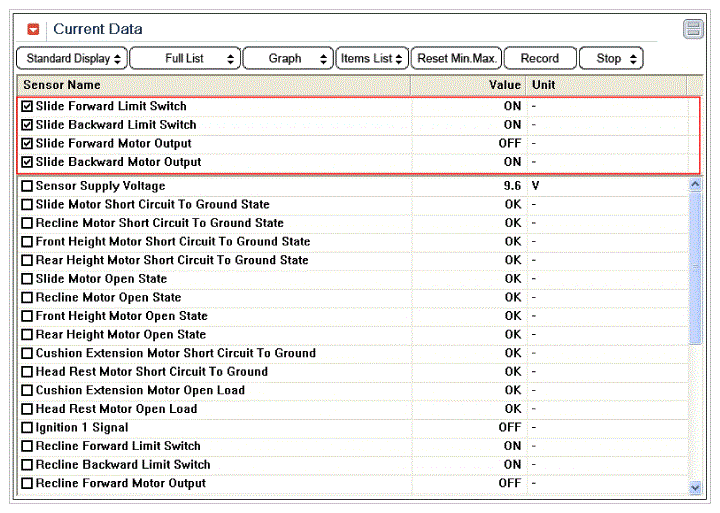

  Fig 2: Display - Slide Motor Switch And Slide Limit Switch Current Data
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is the service data normal?
  YES
  - Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
  NO
  - Substitute with a known - good component and check for proper operation.
    If the problem is corrected, replace the component and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
