Elantra Touring SE, Standard Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Immobilizer Control System
>>
DTC Codes
>>
P1675: Immobilizer-Transponder Programming Error
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram

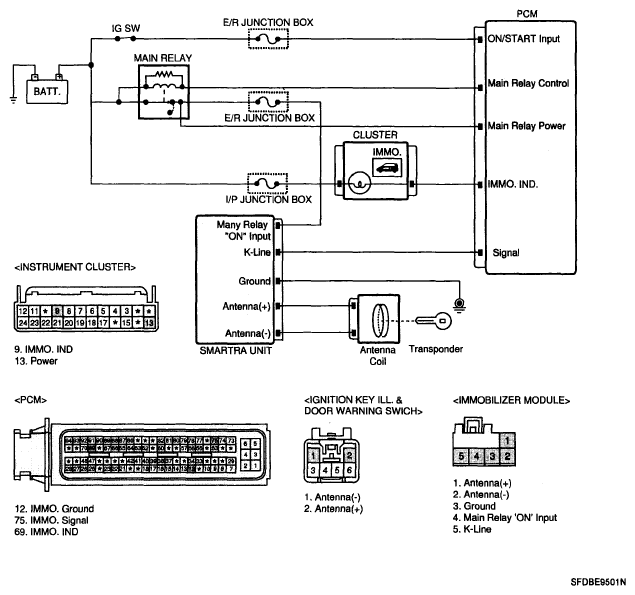

Fig 1: Non-Immobilizer-EMS Connected To An Immobilizer - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
