Front Hub - Axle: Reassembly

WARNING: This page is about a different car, the 2011 Hyundai Elantra Touring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hub bearing to the knuckle assembly.
    1. Lay the knuckle assembly (A) on press.
    2. Lay a new hub bearing upon the knuckle assembly (A).
    3. Lay a suitable adapter (B) upon the hub bearing.
    4. Install the hub bearing to the knuckle assembly by using press.
    CAUTION:
    • Do not press against the inner race of the hub bearing because that can cause damage to the bearing assembly.
    • Always use a new wheel bearing assembly.

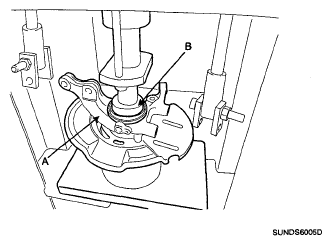

    Fig 1: Identifying Knuckle Assembly And Adapter
    G05364359Courtesy of HYUNDAI MOTOR CO.
  2. Install the hub assembly to the knuckle assembly.
    1. Lay the hub assembly (A) upon a suitable adapter (B).
    2. Lay the knuckle assembly (C) upon the hub assembly (A).
    3. Lay a suitable adapter (D) upon the hub bearing.
    4. Install the hub assembly (A) to the knuckle assembly (C) by using press.
    CAUTION:
    • Do not press against the inner race of the hub bearing because that can cause damage to the bearing assembly.

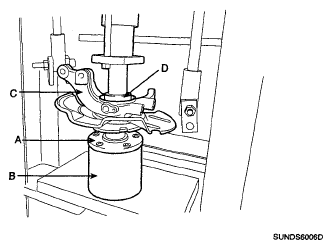

    Fig 2: Identifying Hub Assembly To Knuckle Assembly
    G05364360Courtesy of HYUNDAI MOTOR CO.
  3. Install the snap ring (A).

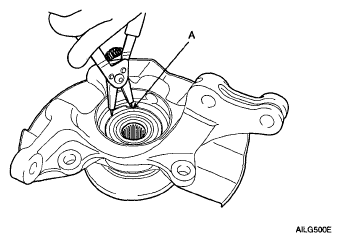

Fig 3: Identifying Snap Ring
G05364354Courtesy of HYUNDAI MOTOR CO.
