Front Hub - Axle: Installation

WARNING: This page is about a different car, the 2011 Hyundai Elantra Touring. However, it is still accessible from the selected car via links, so may be relevant.

Install the hub and knuckle assembly to the drive shaft.

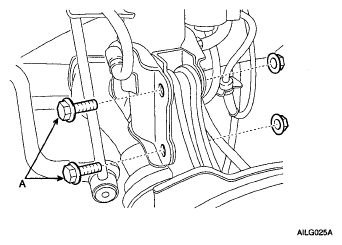

Install the knuckle to the strut assembly and tighten mounting bolts (A) and nuts.

Tightening torque Nm (kgf.m, lb-ft):

Bolts (A): 137.3~156.9 (14.0~16.0, 101.3~115.7)

Fig 1: Identifying Strut Assembly Mounting Bolts And Nuts

Courtesy of HYUNDAI MOTOR CO.

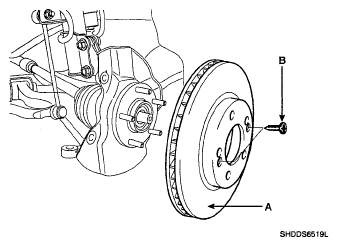

Install the brake disc (A) to the front hub assembly, and tighten the screws (B).

Tightening torque Nm (kgf.m, lb-ft):

Bolt (B): 2.94~5.88 (0.3~0.6, 2.17~4.33)

Fig 2: Identifying Brake Disc, Front Hub Assembly And Screws

Courtesy of HYUNDAI MOTOR CO.

Install the tie rod end ball joint (A) to the knuckle.
Install the nut and split pin.

Tightening torque Nm (kgf.m, lb-ft)

23.5~33.3 (2.4~3.4, 17.4~24.6)

Fig 3: Identifying Tie Rod End Ball Joint To Knuckle

Courtesy of HYUNDAI MOTOR CO.

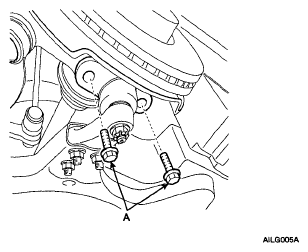

Install the ball joint assembly mounting bolt (A) to the knuckle.

Tightening torque Nm (kgf.m, lb-ft):

Bolt (A): 98.1~117.7 (10~12, 72.3~86.8)

Fig 4: Identifying Ball Joint Assembly Mounting Bolt

Courtesy of HYUNDAI MOTOR CO.

Install the washer (C), castle nut (A) and split pin (B) to the front hub assembly.
Tightening torque Nm (kgf.m, lb-ft):

196.1~274.6 (20~28, 144.7~202.5)

Fig 5: Identifying Washer, Castle Nut And Split Pin
Courtesy of HYUNDAI MOTOR CO.

CAUTION: The washer (B) should be assembled with convex surface outward when installing the castle (A) nut and split pin (C).

Fig 6: Identifying Castle Nut, Split Pin And Washer
Courtesy of HYUNDAI MOTOR CO.

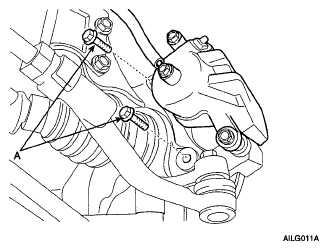

Install the brake caliper and then tighten the mounting bolts (A).
Tightening torque Nm (kgf.m, lb-ft):

78.5~98.1 (8~10, 57.9~72.3)

Fig 7: Identifying Brake Caliper And Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

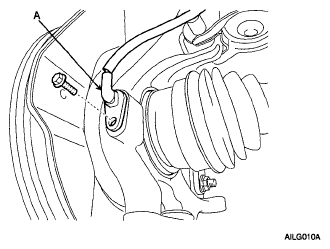

Install the wheel speed sensor (A) to the knuckle.
Tightening torque Nm (kgf.m, lb-ft):

6.9~10.8 (0.7~1.1, 5.1~7.95)

Fig 8: Identifying Wheel Speed Sensor To Knuckle
Courtesy of HYUNDAI MOTOR CO.

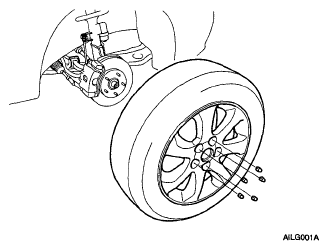

Install the wheel and the tire to the front hub.
Tightening torque Nm (kgf.m, lb-ft):

88.3~107.9 (9~11, 65.1~79.6)

Fig 9: Identifying Front Wheel And Tire
Courtesy of HYUNDAI MOTOR CO.

CAUTION: Be careful not to damage the hub bolts when installing the front wheel and tire.
