Front Hub - Axle: Disassembly

WARNING: This page is about a different car, the 2011 Hyundai Elantra Touring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the snap ring (A).
    Fig 1: Identifying Snap Ring
    G05364354Courtesy of HYUNDAI MOTOR CO.
  2. Remove the hub assembly from the knuckle assembly.
    1. Install the front knuckle assembly (A) on press.
    2. Lay a suitable adapter (B) upon the hub assembly shaft.

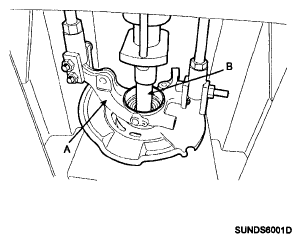

      Fig 2: Identifying Front Knuckle Assembly And Adapter
      G06136616Courtesy of HYUNDAI MOTOR CO.
    3. Remove the hub assembly (B) from the knuckle assembly (A) by using press.

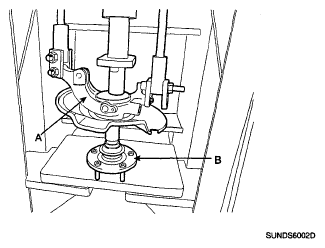

    Fig 3: Identifying Hub Assembly And Knuckle Assembly
    G05364356Courtesy of HYUNDAI MOTOR CO.
  3. Remove the hub bearing inner race from the hub assembly.
    1. Install a suitable tool (A) for removing the hub bearing inner race on the hub assembly.
    2. Lay the hub assembly and tool (A) upon a suitable adapter (B).
    3. Lay a suitable adapter (C) upon the hub assembly shaft.
    4. Remove the hub bearing inner race (D) from the hub assembly by using press.

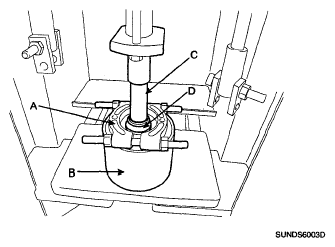

    Fig 4: Identifying Suitable Adapter And Hub Bearing Inner Race
    G05364357Courtesy of HYUNDAI MOTOR CO.
  4. Remove the hub bearing outer race from the knuckle assembly.
    1. Lay the hub assembly (A) upon a suitable adapter (B).
    2. Lay a suitable adapter (C) upon the hub bearing outer race.
    3. Remove the hub bearing outer race from the knuckle assembly by using press.

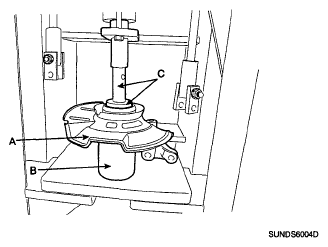

    Fig 5: Identifying Hub Assembly, Suitable Adapter And Adapter
    G05364358Courtesy of HYUNDAI MOTOR CO.
  5. Replace hub bearing with a new one.
