Master Cylinder: Reassembly

WARNING: This page is about a different car, the 2011 Hyundai Elantra Touring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply genuine brake fluid to the rubber parts of the cylinder kit and grommets.
  2. Carefully insert the springs and pistons in the proper direction.
  3. Press the secondary piston (C) with a screwdriver and install the cylinder pin (D).

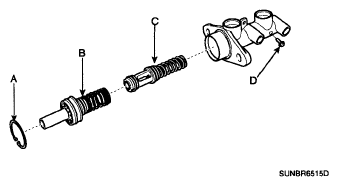

    Fig 1: Identifying Primary Piston Assembly, Pin, Secondary Piston And Retainer Ring
    G05331050Courtesy of HYUNDAI MOTOR CO.
  4. Install the primary piston assembly (B) and the retainer ring (A).
  5. Mount two grommets (D).
  6. Install the reservoir (C) to the master cylinder (B) and tighten the screw (A).
    Fig 2: Identifying Reservoir, Master Cylinder And Mounting Screw
    G06144804Courtesy of HYUNDAI MOTOR CO.
