Master Cylinder: Installation

WARNING: This page is about a different car, the 2011 Hyundai Elantra Touring. However, it is still accessible from the selected car via links, so may be relevant.

Install the master cylinder (B) to the brake booster.
Install the master cylinder mounting nuts (A) and washers.
Tightening torque :

9.8~15.7 N.m (1.0~1.6 kgf.m, 7.2~11.6 lb-ft)

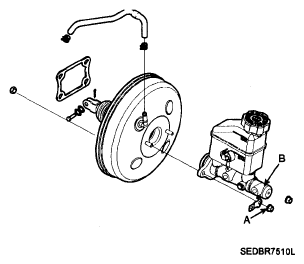

Fig 1: Identifying Master Cylinder Mounting Nuts And Master Cylinder
Courtesy of HYUNDAI MOTOR CO.
Connect the brake lines (A) to the master cylinder.
Tightening torque :

12.7~16.7 N.m (1.3~1.7 kgf.m, 9.4~12.3 lb-ft) - M10

18.6~22.6 N.m (1.9~2.3 kgf.m, 13.7~18.6 lb-ft) - M12

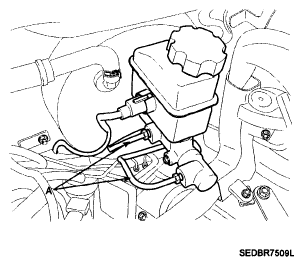

Fig 2: Identifying Brake Lines
Courtesy of HYUNDAI MOTOR CO.
Connect the brake fluid level switch connector (A).

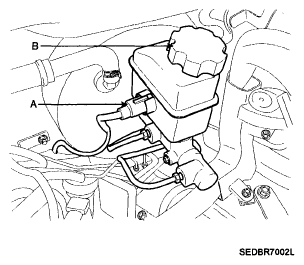

Fig 3: Identifying Brake Fluid Level Switch Connector And Reservoir Cap
Courtesy of HYUNDAI MOTOR CO.
Refill the master cylinder reservoir to the MAX line.
Bleed the brake system. (Refer to "BLEEDING OF BRAKE SYSTEM ")
