Front Disc Brake: Removal

WARNING: This page is about a different car, the 2011 Hyundai Elantra Touring. However, it is still accessible from the selected car via links, so may be relevant.

Remove the brake hose bolt (B) and the guide rod bolts (C) from the caliper assembly (A).

Fig 1: Identifying Brake Hose Bolt, Guide Rod Bolts And Caliper Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the caliper assembly (A).

Fig 2: Identifying Caliper Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the pads (B), the pad shims (C) and the pad springs (D) from the caliper carrier (A).

Fig 3: Identifying Pads, Pad Shims, Pad Springs And Caliper Carrier
Courtesy of HYUNDAI MOTOR CO.
Remove the caliper carrier (B) and the caliper mounting bolts (A).

Fig 4: Identifying Caliper Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

Fig 5: Identifying Caliper Carrier
Courtesy of HYUNDAI MOTOR CO.
Remove the brake disc (A) and the screw (B).

Fig 6: Identifying Brake Disc And Screw
Courtesy of HYUNDAI MOTOR CO.

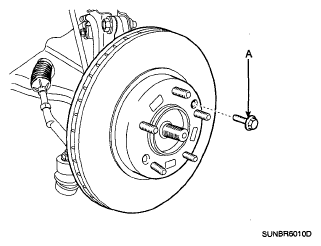

NOTE: Remove the brake disc from hub using M8 bolt (A) if the brake disc has been seized with the hub due to corrosion or overheat.
Be careful not to use the hammer. The disc can be damaged if you remove the disc from the hub by hammer.

Fig 7: Identifying M8 Bolt
Courtesy of HYUNDAI MOTOR CO.
