Components (2)

WARNING: This page is about a different car, the 2011 Hyundai Elantra Touring. However, it is still accessible from the selected car via links, so may be relevant.

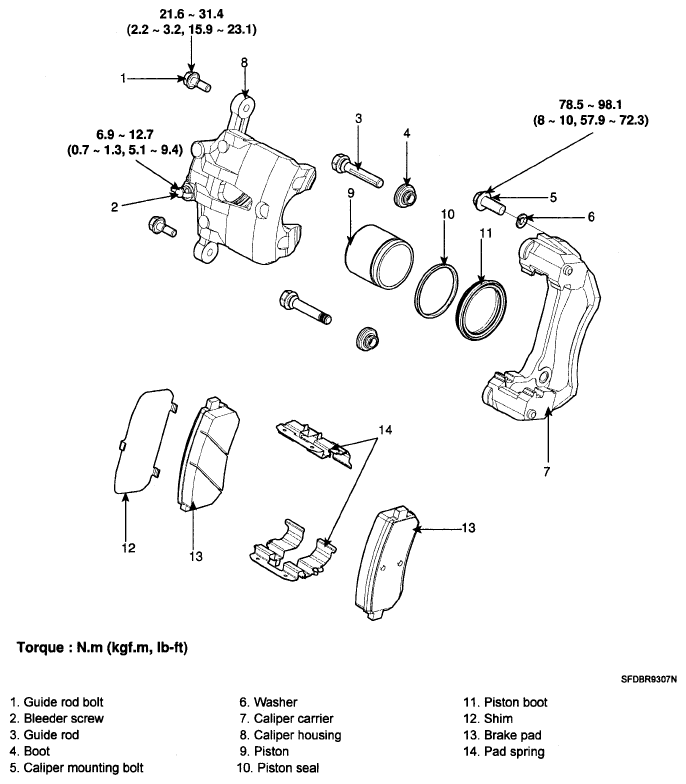

Fig 1: Front Disc Brake Replacement Components With Torque Specifications (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
