Brake Line: Removal

WARNING: This page is about a different car, the 2011 Hyundai Elantra Touring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the brake hose (C) from the brake line (A) using a flare-nut wrench (B).
    Fig 1: Identifying Brake Hose, Brake Line And Flare-Nut Wrench
    G05364844Courtesy of HYUNDAI MOTOR CO.

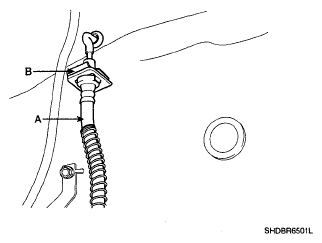

  2. Remove the brake hose clip (B), and then remove the brake hose (A).
    Fig 2: Identifying Brake Hose Clip And Brake Hose
    G05364841Courtesy of HYUNDAI MOTOR CO.
  3. Remove the connector bolt (A) from the caliper, and disconnect the brake hose (B) from the caliper.
    Fig 3: Identifying Connector Bolt And Brake Hose
    G05364842Courtesy of HYUNDAI MOTOR CO.
