Floor Console Replacement

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the upper cover (A).

Fig 1: Identifying Upper Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (B).

Fig 2: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.
Gently detach the hook, remove the parking brake cover (A).

Fig 3: Identifying Parking Brake Cover
Courtesy of HYUNDAI MOTOR CO.

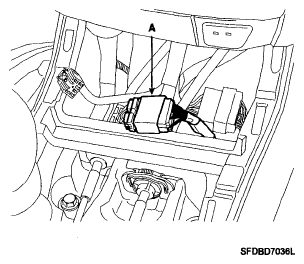

Disconnect the connector (A).

Fig 4: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.
After loosening the console mounting screws, remove the floor console assembly (A).

Fig 5: Identifying Floor Console Assembly With Console Mounting Screws
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
- Replace any damaged clips.
