Adjusting the shift cable

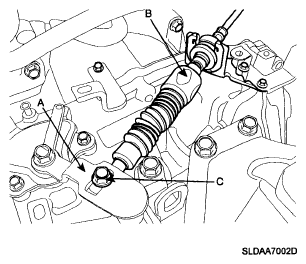

- Set the room side lever and the manual lever (A) to "N" position.
- Push the shift cable (B) lightly to "F" direction shown to eliminate the free play.
- Tighten the adjusting nut (C).
- Check that this part operates surely at each range of the manual lever corresponding to each position of the room lever.
Tightening torque:
10-14 Nm (1.0-1.4 kgf.m, 7.2-10.1 lb-ft)
