Section 56 (Multi Function Switch): Component

WARNING: This page is about a different car, the 2011 Hyundai Elantra Touring. However, it is still accessible from the selected car via links, so may be relevant.

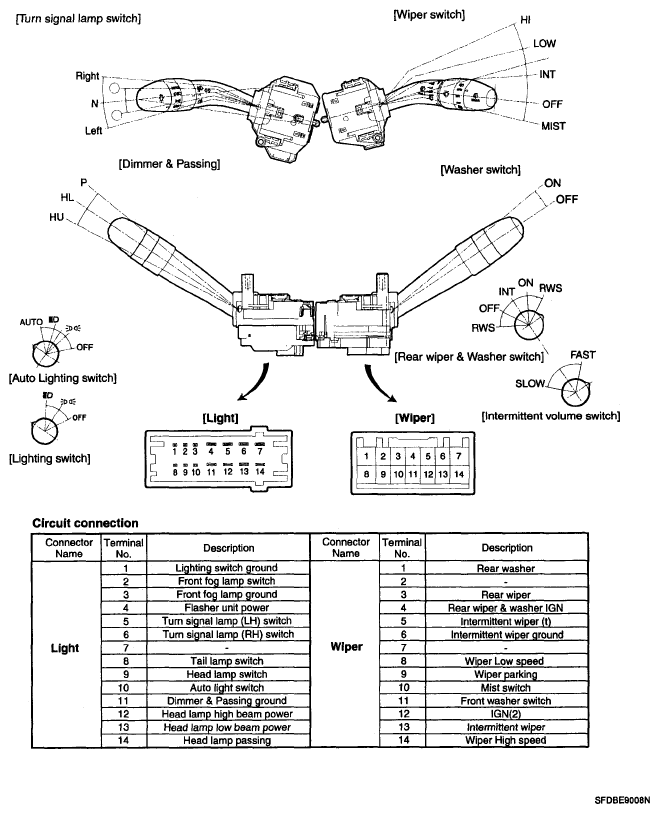

Fig 1: Identifying Multi Function Switch Component
G06145252Courtesy of HYUNDAI MOTOR CO.
