Home >> Hyundai >> 2012 >> Elantra Touring GLS, Automatic Trans >> Repair and Diagnosis >> External Pages >> Different car >> Section 13 (Brake System) >> Master Cylinder >> Components

Master Cylinder: Components

WARNING: This page is about a different car, the 2011 Hyundai Elantra Touring. However, it is still accessible from the selected car via links, so may be relevant.

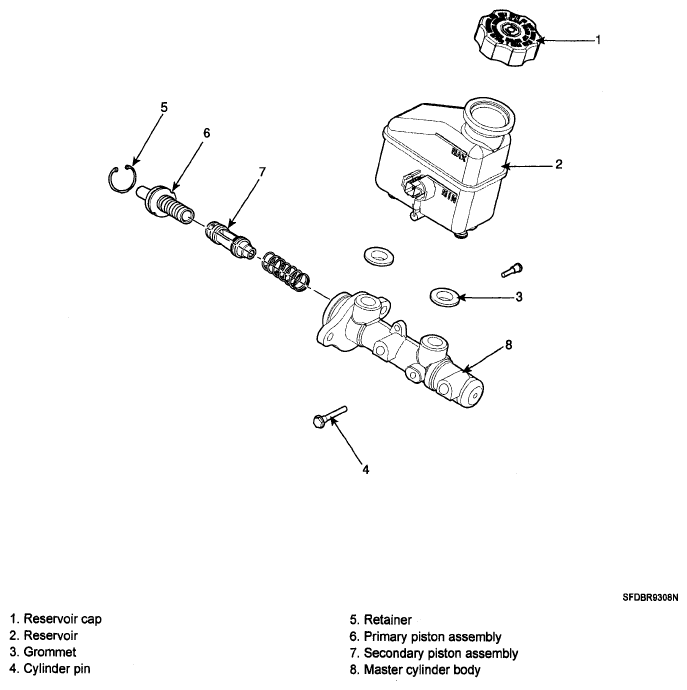

Fig 1: Identifying Master Cylinder Components
G06144793Courtesy of HYUNDAI MOTOR CO.
