Battery Test Procedure

  1. Connect the tester to the battery.
    1. Red clamp to battery positive (+) terminal.
    2. Black clamp to battery negative (-) terminal.
      Fig 1: Connecting Tester To Battery
      G04879694Courtesy of HYUNDAI MOTOR CO.
      CAUTION: Connect clamps securely. If "CHECK CONNECTION" message is displayed on the screen, reconnect clamps securely.
  2. The tester will ask if the battery is connected "IN A VEHICLE" or "OUT OF A VEHICLE". Make your selection by pressing the arrow buttons; then press ENTER.
    Fig 2: Micro 570 Analyzer Screen Display - IN VEHICLE
    G04879695Courtesy of HYUNDAI MOTOR CO.
  3. Select CCA and press the ENTER button.
    Fig 3: Micro 570 Analyzer Screen Display - TEST USING CCA
    G04879696Courtesy of HYUNDAI MOTOR CO.
    NOTE:
    • CCA : Cold cranking amps, is an SAE specification for cranking batteried at -0.4°F (-18°C).
  4. Set the CCA value displayed on the screen to the CCA value marked on the battery label by pressing up and down buttons and press ENTER.
    Fig 4: Micro 570 Analyzer Screen Display - 660 CCA
    G04879697Courtesy of HYUNDAI MOTOR CO.
    NOTE: The battery ratings (CCA) displayed on the tester must be identical to the ratings marked on battery label.

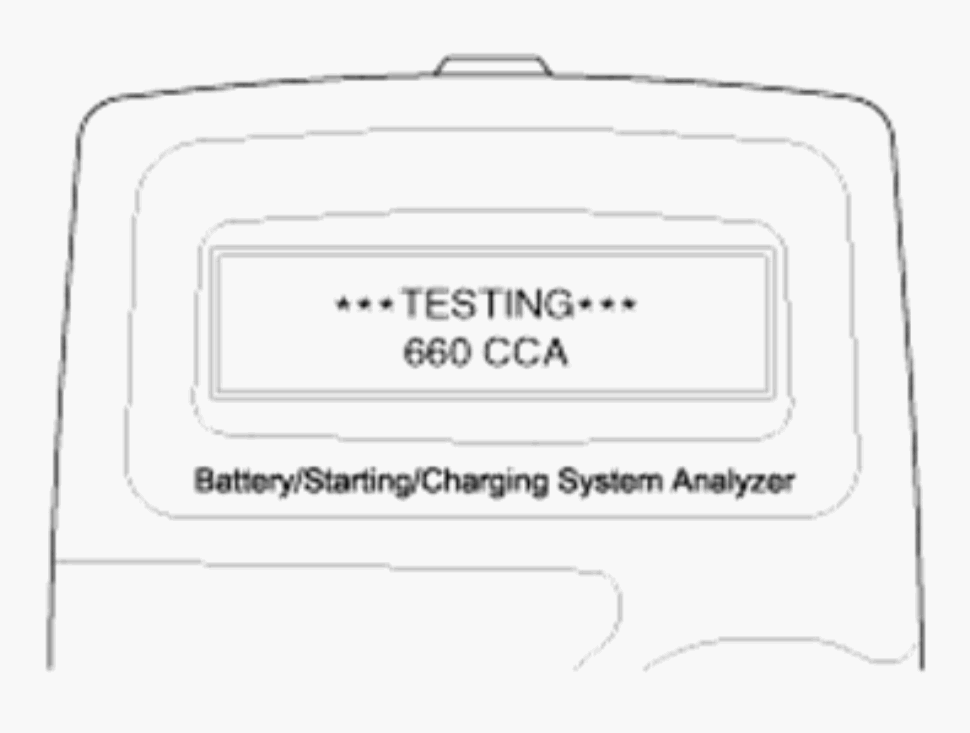

    Fig 5: Micro 570 Analyzer Screen Display - Testing
    G00515657Courtesy of HYUNDAI MOTOR CO.
    NOTE: The battery ratings (CCA) displayed on the tester must be identical to the ratings marked on battery label.
  5. The tester will conduct battery test.
    Fig 6: Micro 570 Analyzer Screen Display - Testing
    G00515657Courtesy of HYUNDAI MOTOR CO.
  6. The tester displays battery test results including voltage and battery ratings.

    Refer to the table below and take the appropriate action as recommended by the Micro 570.

    Fig 7: Micro 570 Analyzer Screen Display - GOOD BATTERY
    G04879698Courtesy of HYUNDAI MOTOR CO.

    Battery Test Results

    BATTERY TEST RESULTS

    Result On Printer Remedy
    Good battery No action is required
    Good recharge Battery is in a good state
    Recharge the battery and use. You have to follow instruction below when you charge battery and retest, otherwise test result can be inaccurate. (See 'Charge and Retest method after battery charge' below.).
    Charge & Retest Battery is not charged properly
    • Charge and test the battery again You have to follow instruction below when you charge battery and retest, otherwise test result can be inaccurate. (See 'Charge and Retest method after battery charge' below.)
    Replace battery
    • Replace battery and recheck the charging system. (Improper connection between battery and vehicle cables may cause "REPLACE BATTERY", retest the battery after removing cables and connecting the tester to the battery terminal directly prior to replacing the battery)
    Bad cell-replace
    • Charge and retest the battery. If the Micro 570 recommends "REPLACE BATTERY", replace the battery and recheck the charging system.

    [Charge And Retest Method After Battery Charge]

    Battery charge

    Set battery charger to 'Auto Mode' (The Mode that charging current drops as the battery charges.) and charge battery until charging current down close to zero or the charger alerts you with an alarm when charge is complete. (Minimum charging time recommended: More than 3 hours with Auto Mode that explained above)

    1. If battery is not fully charged, battery surface voltage will be high while the amount of current charged (CCA) in battery is low. If you measure the battery under this condition, tester may misjudge that battery sulfation occurred because the amount of current in battery is too low in comparison with battery voltage. * Surface voltage: When battery is charged electrolyte temperature increases and chemical reaction become active resulting in an excessive increase of battery voltage. It is known that it takes approximate one day to subside this increased surface voltage completely.

      Battery Test after charge

      Do not test battery right after the charge. Test battery after battery surface voltage has subsided as instructed in the following procedure.

      1. When battery charge is complete, install the battery in the vehicle.
      2. Put IG key to ON position and turn on head lamp with low beam, and wait 5 minutes. (Discharge for 5 minutes)
      3. Turn off the head lamp and IG key, and wait 5 minutes. (Waiting for 5 minutes)
      4. Remove +, - cable from the battery and test battery.
        WARNING: Whenever filing a claim for battery, the print out of the battery test results must be attached.

    7. Starter Test Procedure

  7. After the battery test, press ENTER immediately for the starter test.
    Fig 8: Micro 570 Analyzer Screen Display - STARTER TEST
    G04879699Courtesy of HYUNDAI MOTOR CO.
  8. Start the engine.
    Fig 9: Micro 570 Analyzer Screen Display - START ENGINE
    G04879700Courtesy of HYUNDAI MOTOR CO.
  9. Cranking voltage and starter test results will be displayed on the screen. Refer to the table below and take the appropriate action as recommended by the Micro 570.
    Fig 10: Micro 570 Analyzer Screen Display - CRANKING VOLTAGE NORMAL
    G04879701Courtesy of HYUNDAI MOTOR CO.

    Starter Test Results

    STARTER TEST RESULTS

    Result On Printer Remedy
    Cranking voltage normal System shows a normal starter draw
    Cranking voltage low Cranking voltage is lower than normal level
    • Check starter
    Charge battery The state of battery charge is too low to test
    • Charge the battery and retest
    Replace battery
    • Replace battery
    • If the vehicle is not started though the battery condition of "Good Battery".
    • Check wiring for open circuit, battery cable connection, starter and repair or replace as necessary.
    • If the engine does crank, check fuel system.
    NOTE: When testing the vehicle with old diesel engines, the test result will not be favorable if the glow plug is not heated. Conduct the test after warming up the engine for 5 minutes.

    Charging System Test Procedure

  10. Press ENTER to begin charging system test.
    Fig 11: Micro 570 Analyzer Screen Display - CHARGING TEST
    G04879702Courtesy of HYUNDAI MOTOR CO.
  11. The tester displays the actual voltage of alternator. Press ENTER to continue.
    Fig 12: Micro 570 Analyzer Screen Display - ENTER TO CONT
    G04879703Courtesy of HYUNDAI MOTOR CO.
  12. Turn off all electrical load and rev engine for 5 seconds with pressing the accelerator pedal. (Follow the instructions on the screen)
    Fig 13: Micro 570 Analyzer Screen Display - LOADS OFF REV ENGINE 5 SEC
    G04879704Courtesy of HYUNDAI MOTOR CO.

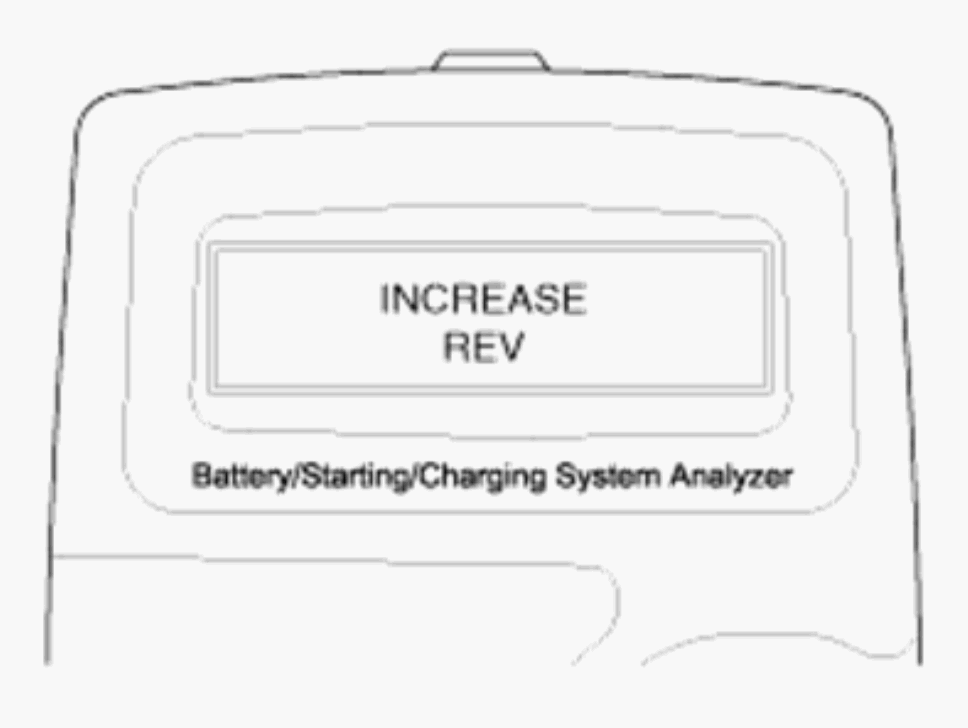

    Fig 14: Micro 570 Analyzer Screen Display - INCREASE REV
    G00515658Courtesy of HYUNDAI MOTOR CO.

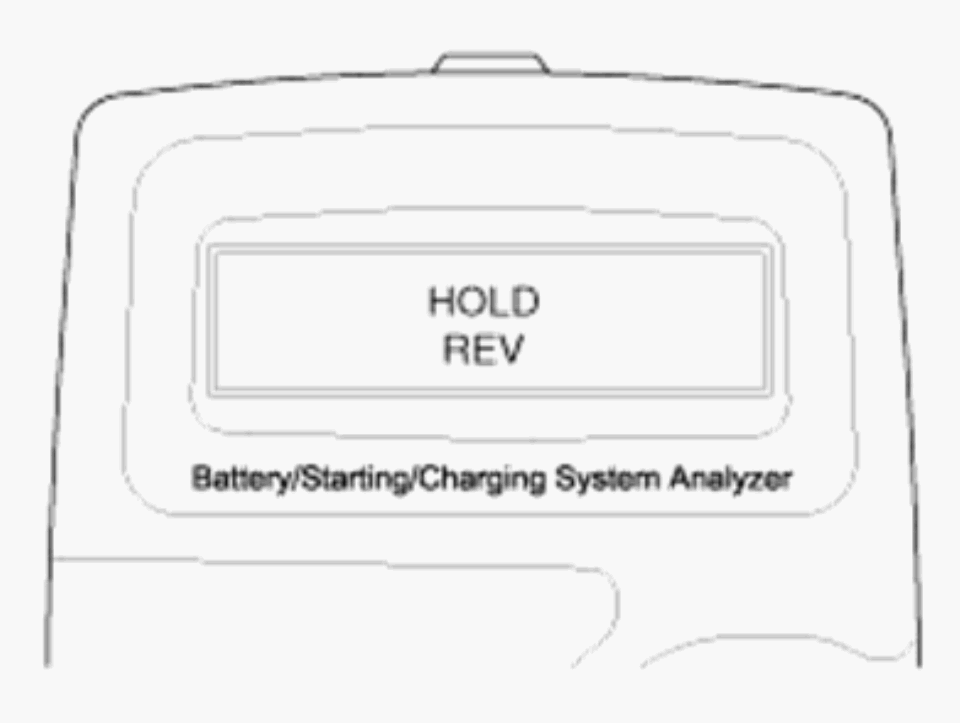

    Fig 15: Micro 570 Analyzer Screen Display - HOLD REV
    G00515660Courtesy of HYUNDAI MOTOR CO.
  13. The message that engine RPM is detected will be displayed on the screen. Press ENTER to continue

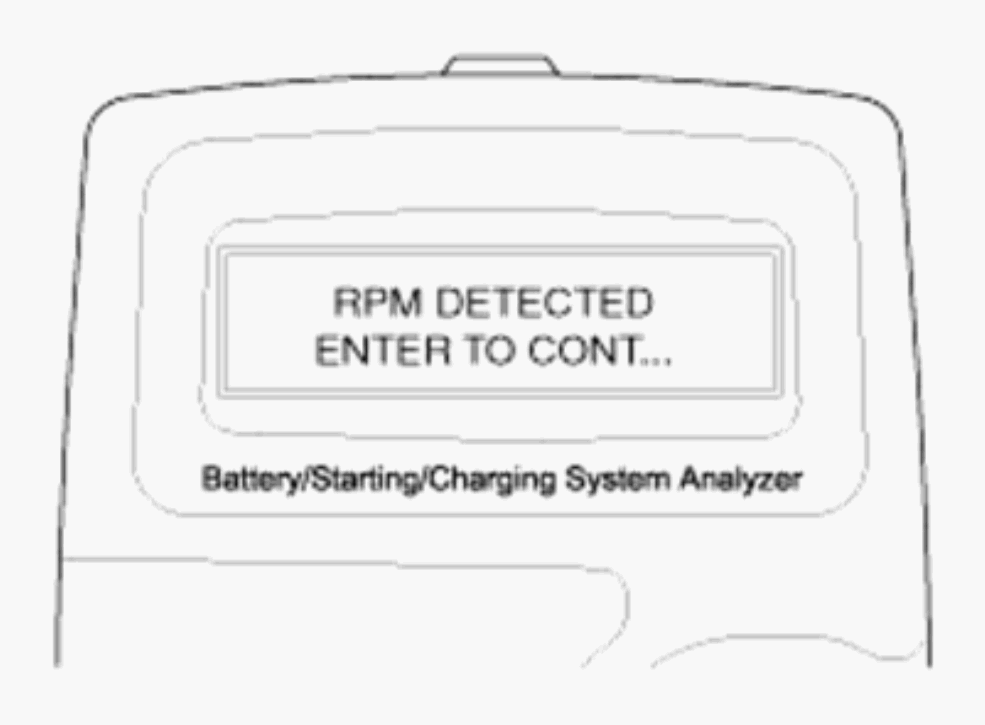

    Fig 16: Micro 570 Analyzer Screen Display - RPM DETECTED ENTER TO CONT...
    G00515661Courtesy of HYUNDAI MOTOR CO.
  14. If the engine RPM is not detected, press ENTER after revving engine.
    Fig 17: Micro 570 Analyzer Screen Display - ENTER TO CONT AFTER REVVING
    G00515662Courtesy of HYUNDAI MOTOR CO.
  15. The tester will conduct charging system test during loads off.
    Fig 18: Micro 570 Analyzer Screen Display - TESTING ENGINE AT IDLE
    G04879706Courtesy of HYUNDAI MOTOR CO.
    Fig 19: Micro 570 Analyzer Screen Display - DIODE RIPPLE NORMAL
    G04879707Courtesy of HYUNDAI MOTOR CO.
  16. Turn on electrical loads (air conditioner, lamps, audio and etc). Press ENTER to continue.

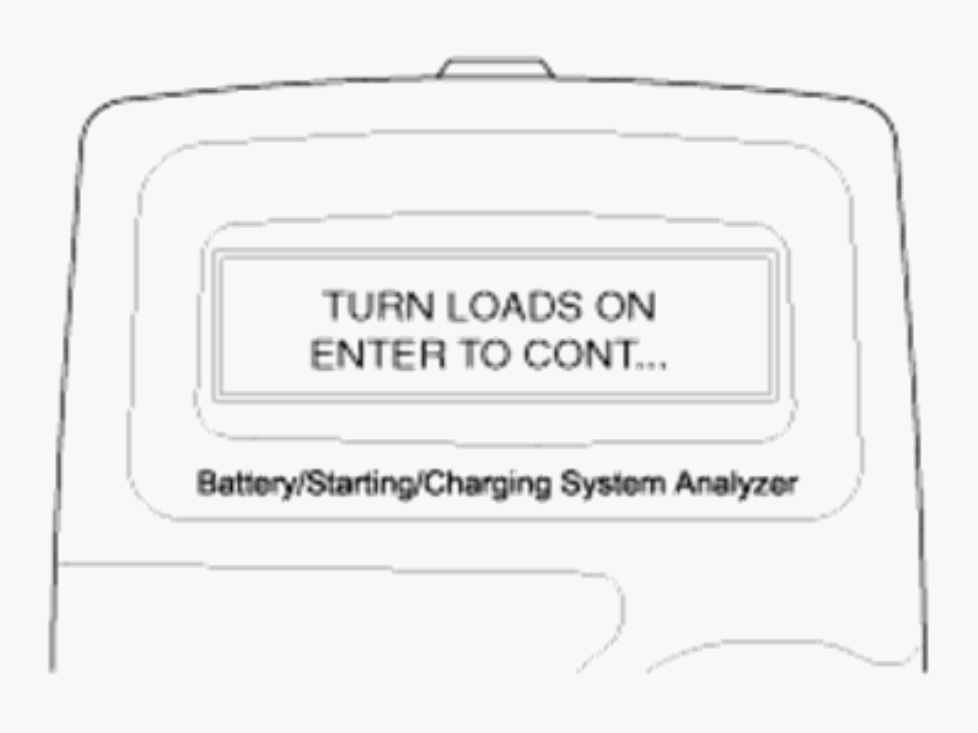

    Fig 20: Micro 570 Analyzer Screen Display - TURN LOADS ON ENTER TO CONT...
    G00515663Courtesy of HYUNDAI MOTOR CO.
  17. The tester will conduct charging system test during loads on.

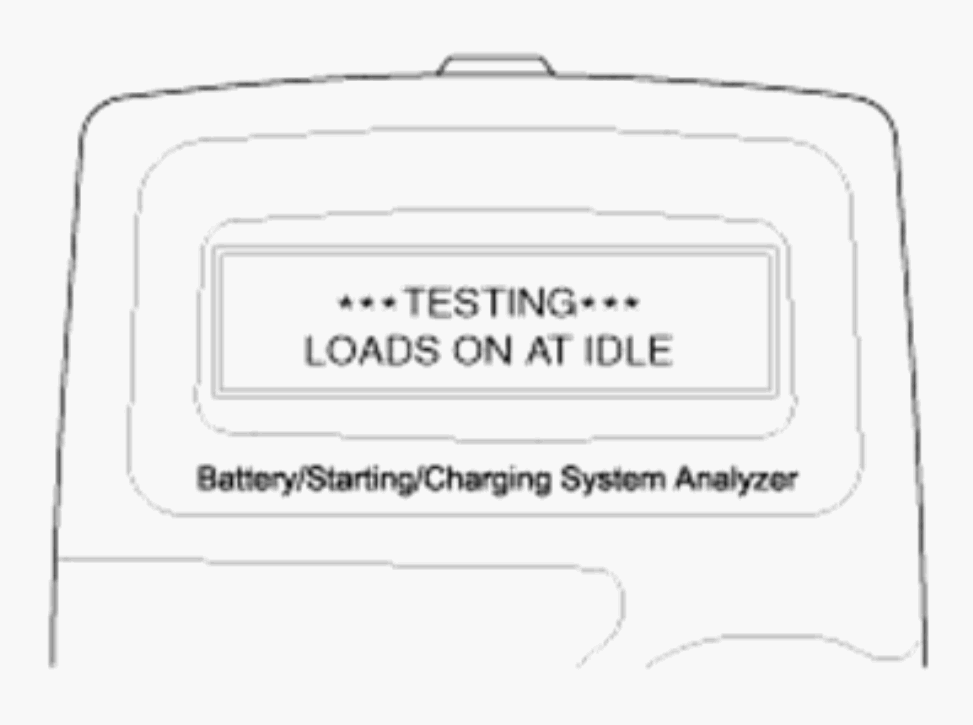

    Fig 21: Micro 570 Analyzer Screen Display - ***TESTING*** LOADS ON AT IDLE
    G00515664Courtesy of HYUNDAI MOTOR CO.
  18. Rev engine for 5 seconds with pressing the accelerator pedal. (Follow the instructions on the screen)

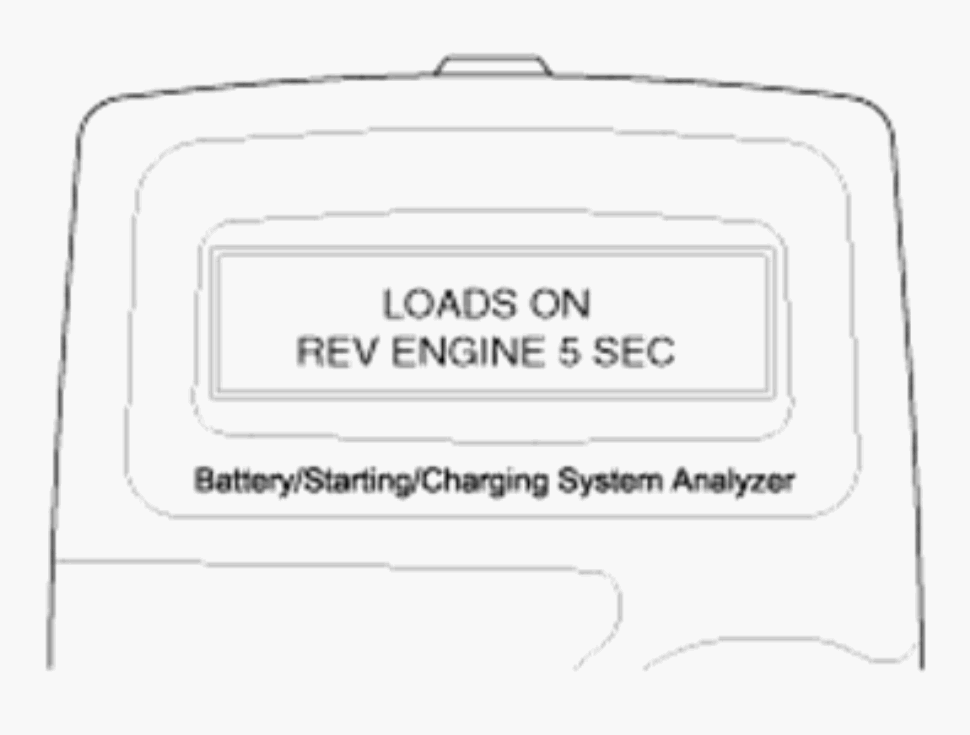

    Fig 22: Micro 570 Analyzer Screen Display - LOADS ON REV ENGINE 5 SEC
    G00515665Courtesy of HYUNDAI MOTOR CO.
    Fig 23: Micro 570 Analyzer Screen Display - INCREASE REV
    G00515658Courtesy of HYUNDAI MOTOR CO.
    Fig 24: Micro 570 Analyzer Screen Display - HOLD REV
    G00515660Courtesy of HYUNDAI MOTOR CO.
  19. The message that engine RPM is detected will be displayed on the screen. Press ENTER to continue.
    Fig 25: Micro 570 Analyzer Screen Display - RPM DETECTED ENTER TO CONT...
    G00515661Courtesy of HYUNDAI MOTOR CO.
  20. If the engine RPM is not detected, press ENTER after revving engine.

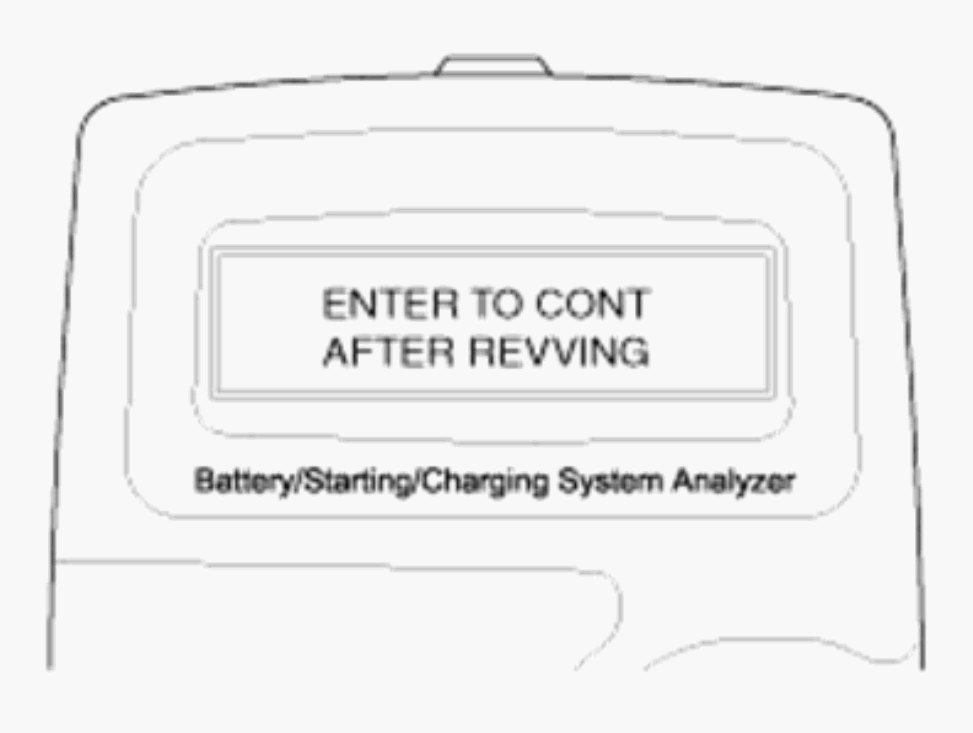

    Fig 26: Micro 570 Analyzer Screen Display - ENTER TO CONT AFTER REVVING
    G00515662Courtesy of HYUNDAI MOTOR CO.
  21. Turn off electrical loads (air conditioner, lamps, audio and etc). Turn the engine off.

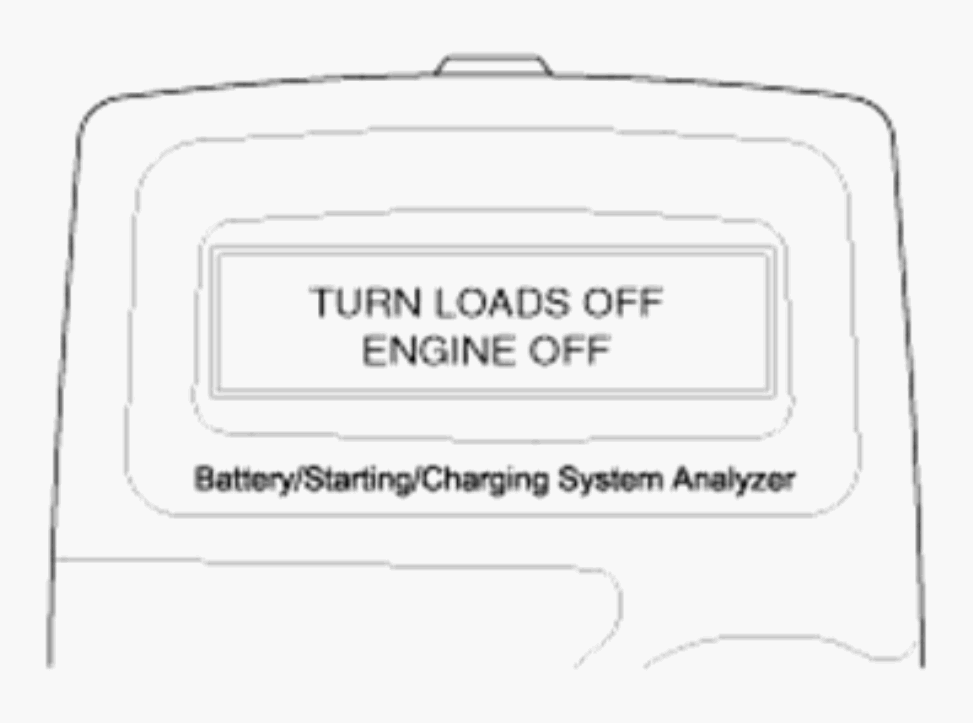

    Fig 27: Micro 570 Analyzer Screen Display - TURN LOADS OFF ENGINE OFF
    G00515666Courtesy of HYUNDAI MOTOR CO.
  22. Charging voltage and charging system test results will be displayed on the screen. Shut off engine end disconnect the tester clamps from the battery. Refer to the table below and take the appropriate action as recommended by the Micro 570.

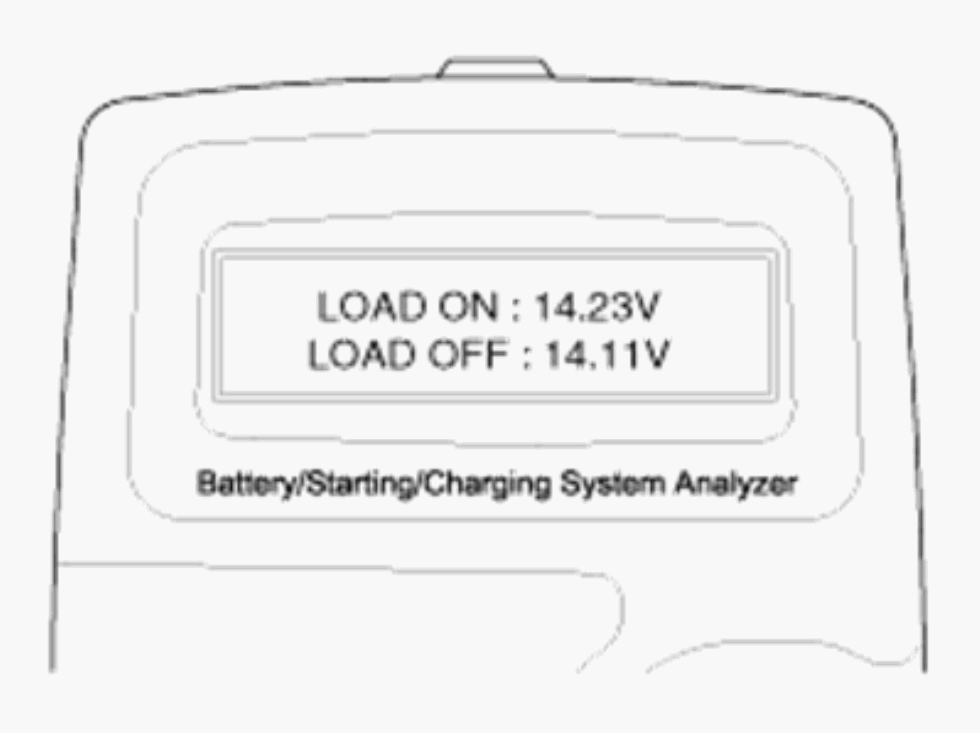

    Fig 28: Micro 570 Analyzer Screen Display - LOAD ON: 14.23V LOAD OFF: 14.11V
    G00515667Courtesy of HYUNDAI MOTOR CO.
    Fig 29: Micro 570 Analyzer Screen Display - DIODE RIPPLE NORMAL
    G04879707Courtesy of HYUNDAI MOTOR CO.

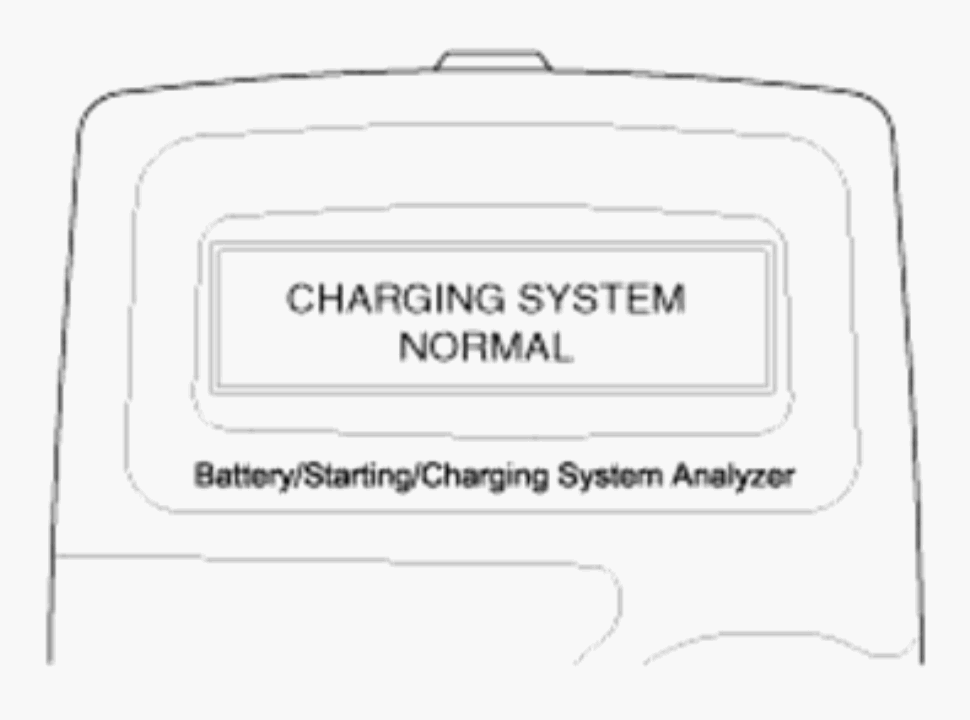

    Fig 30: Micro 570 Analyzer Screen Display - CHARGING SYSTEM NORMAL
    G00515668Courtesy of HYUNDAI MOTOR CO.
