Home >> Hyundai >> 2012 >> Elantra Touring GLS, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Starting System >> Starter >> Components

Starting System: Starter: Components

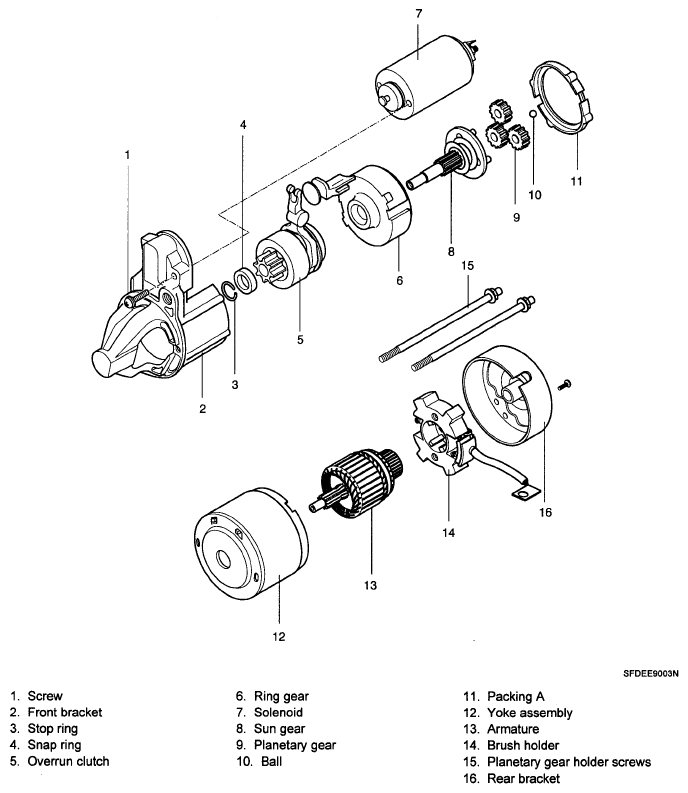

Fig 1: Identifying Starter Components

G06135966

Courtesy of HYUNDAI MOTOR CO.
