Components Location

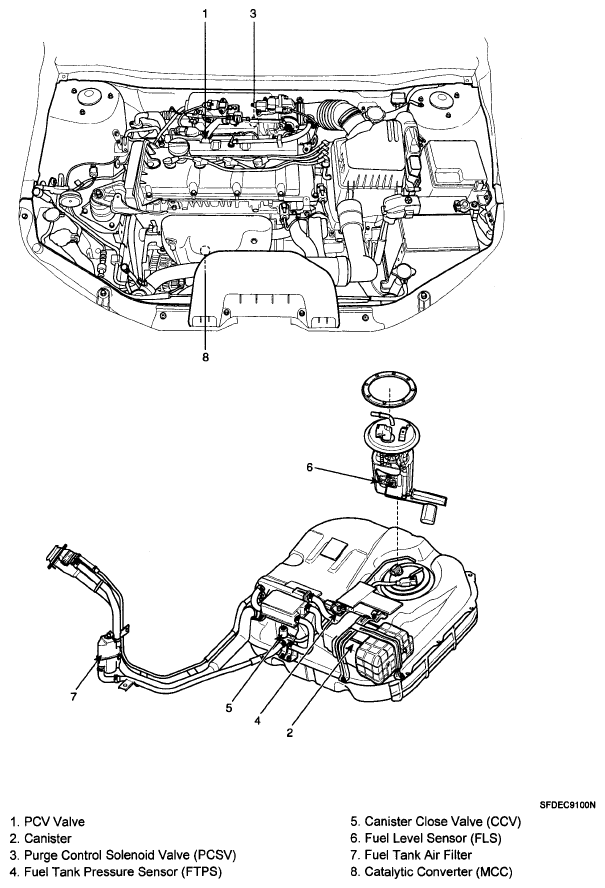

Fig 1: Identifying Emissions Control System Components Location (1 Of 2)
G06135985Courtesy of HYUNDAI MOTOR CO.

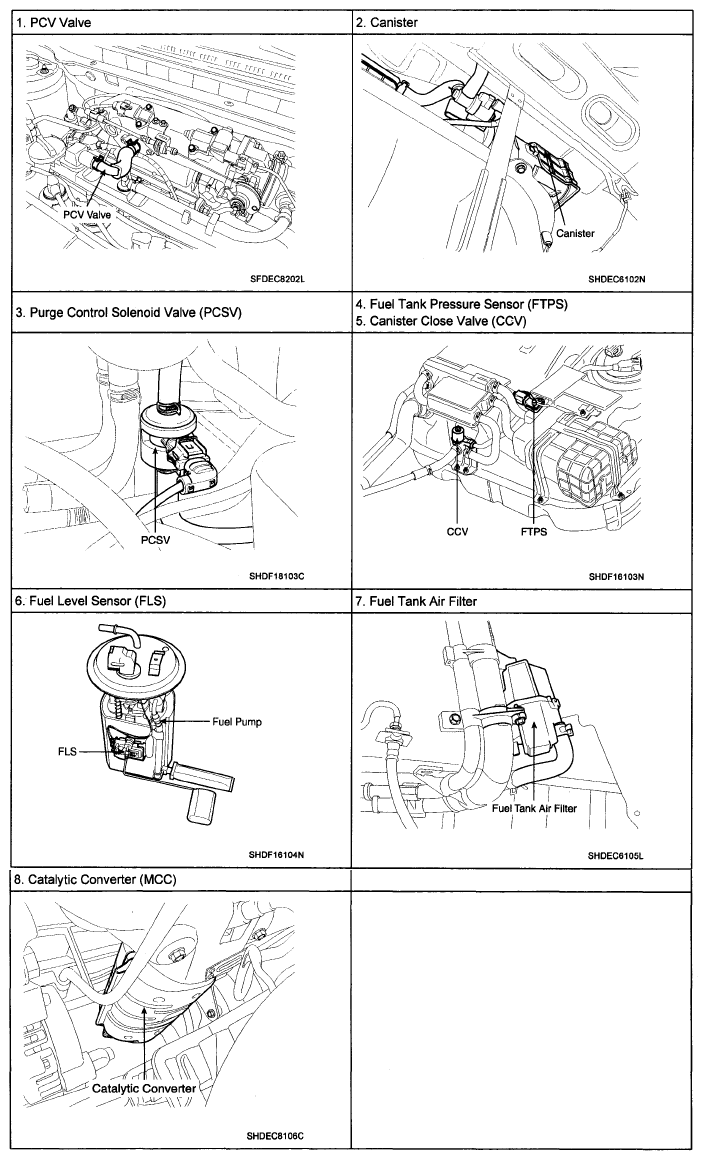

Fig 2: Identifying Emissions Control System Components Location (2 Of 2)
G06135986Courtesy of HYUNDAI MOTOR CO.
