Starter Relay: Inspection

Remove the starter relay (A) and check continuity between the terminals. If the continuity is not as specified, replace the relay.

Fig 1: Starter Relay Terminals Continuity Chart

Courtesy of HYUNDAI MOTOR CO.

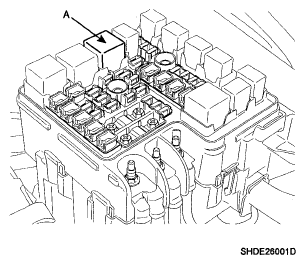

Fig 2: Locating Starter Relay

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Identifying Starter Relay Circuit

Courtesy of HYUNDAI MOTOR CO.
