Charging System: Alternator: Removal

  1. Disconnect the battery negative terminal (A) first, then the positive terminal (B).

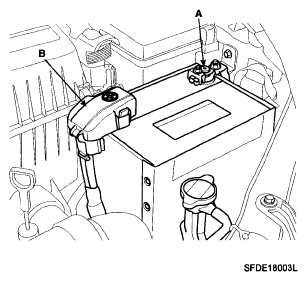

    Fig 1: Locating Battery Negative Terminal And Positive Terminal
    G06135946Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the alternator connector (A) and "B" terminal cable from the alternator. Loosen the pipe (B).
    Fig 2: Locating Alternator Connector
    G05363621Courtesy of HYUNDAI MOTOR CO.
  3. Remove the adjusting bolt (A), mounting bolt (B), the alternator belt (C) and the alternator mounting bracket (D).
  4. Pull out the through bolt, then remove the alternator (E).
    Fig 3: Locating Adjusting Bolt, Mounting Bolt, Alternator Belt And Alternator Mounting Bracket
    G05363622Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
  6. Adjust the alternator belt tension after installation.
