Elantra Touring GLS, Automatic Trans
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Electronic Stability Control (ESC)
>>
ESC Circuit Diagram
ESC Circuit Diagram

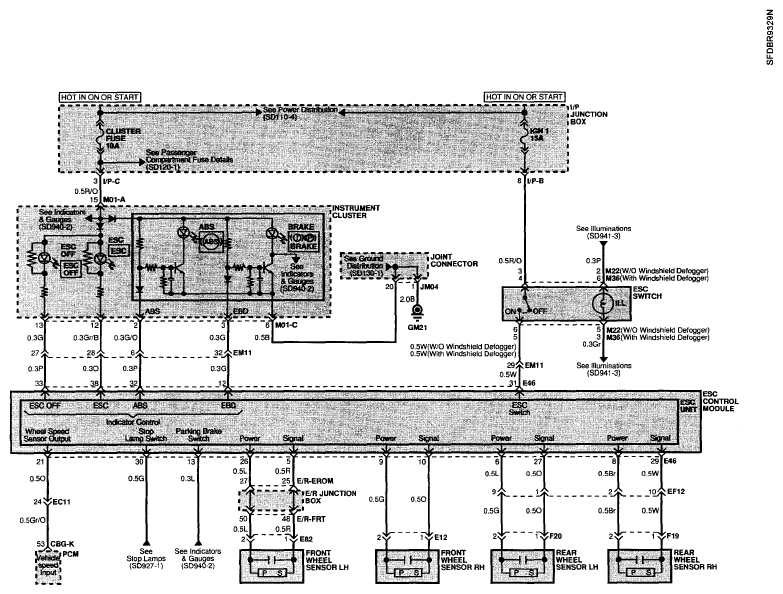

Fig 1: ESC Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

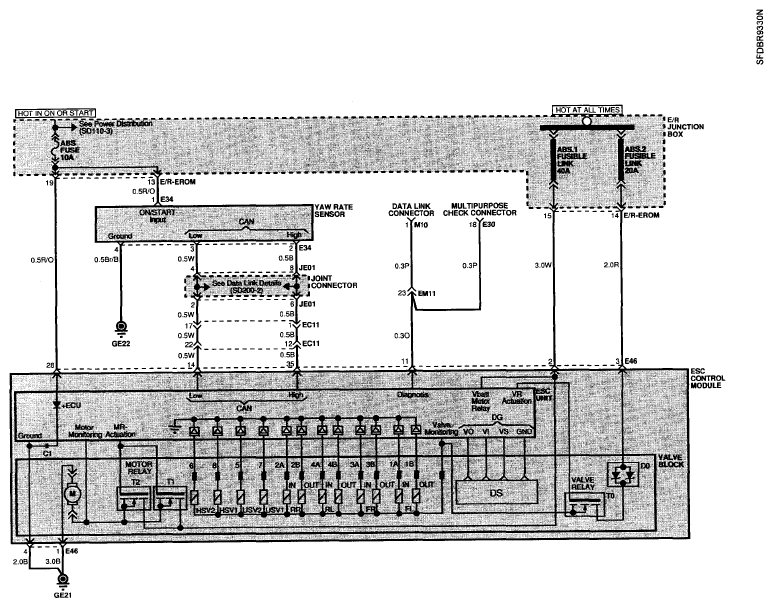

Fig 2: ESC Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
