Scan Tool Check

  1. Turn the ignition switch OFF.
  2. Connector the Scan tool to the 16P data link connector located the driver's side kick panel.

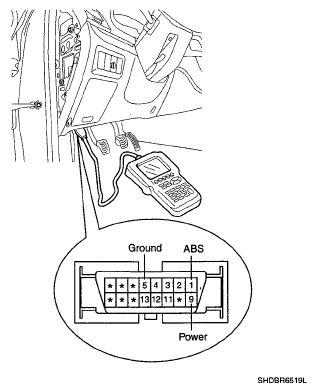

    Fig 1: Connecting Scan Tool To 16P Data Link Connector
    G05364965Courtesy of HYUNDAI MOTOR CO.
  3. Turn the ignition switch ON.
  4. Check for DTC using the Scan tool
  5. After completion trouble of the repair or correction of the problem, erase the stored fault codes using the scan tool.
  6. Disconnect the Scan tool from the 16P data link connector.
