ABS Control Unit: Components

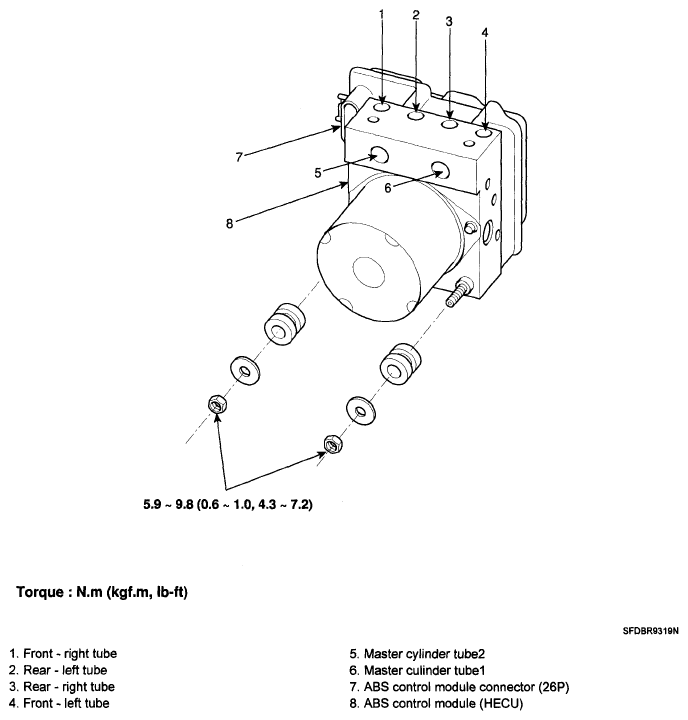

Fig 1: ABS Control Unit Components With Torque Specifications

G06144905

Courtesy of HYUNDAI MOTOR CO.
