ABS Circuit Diagram
ABS Circuit Diagram

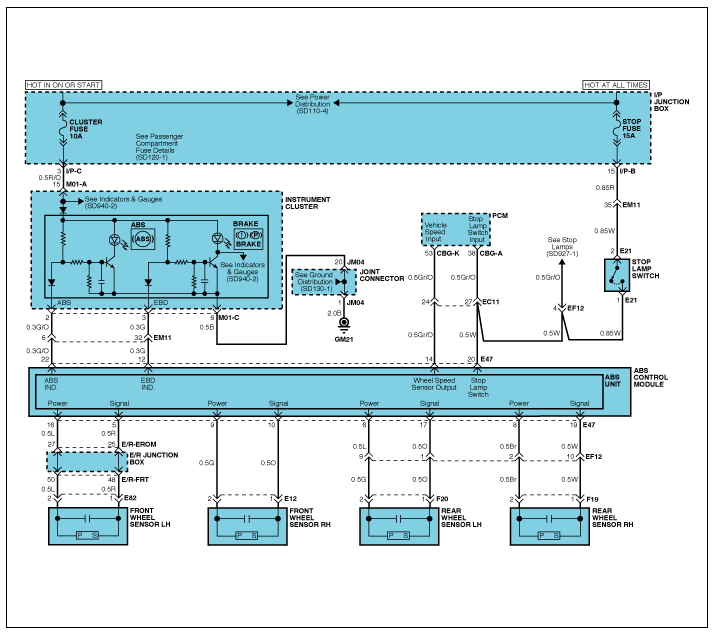

Fig 1: ABS Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

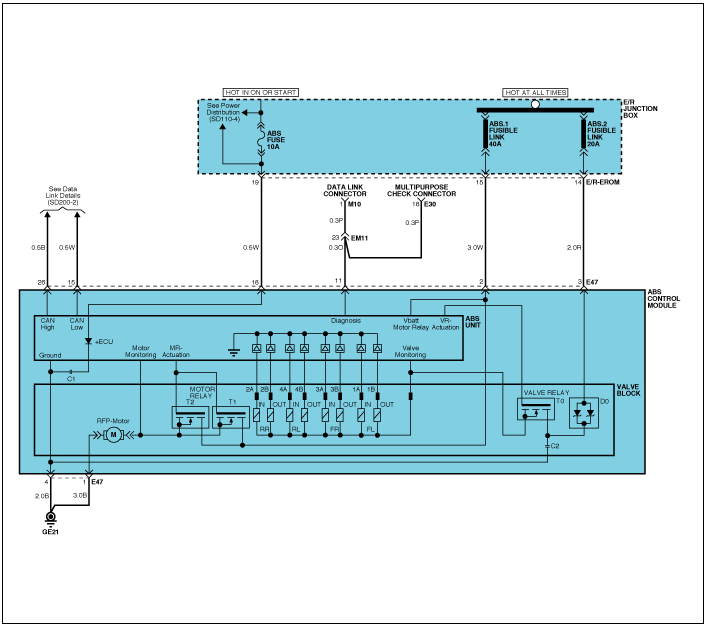

Fig 2: ABS Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
