Rear Power Window Motor

Remove (-) negative battery terminal.
Remove the rear door trim. (Refer to REAR DOOR )

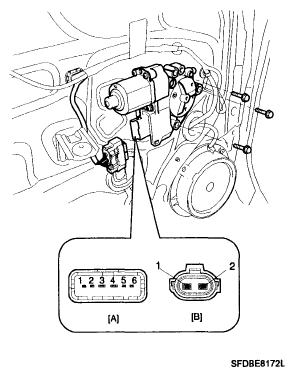

Disconnect the connector from the motor. (A: Safety, B : Standard)

Fig 1: Identifying Rear Power Window Motor Connector Terminal
Courtesy of HYUNDAI MOTOR CO.
Connect the motor terminals directly to battery voltage (12 V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

Fig 2: Terminals Position Chart
Courtesy of HYUNDAI MOTOR CO.

[SAFETY]

Fig 3: Terminals Position Chart (Safety)
Courtesy of HYUNDAI MOTOR CO.
