Interior Trim: Console: Components

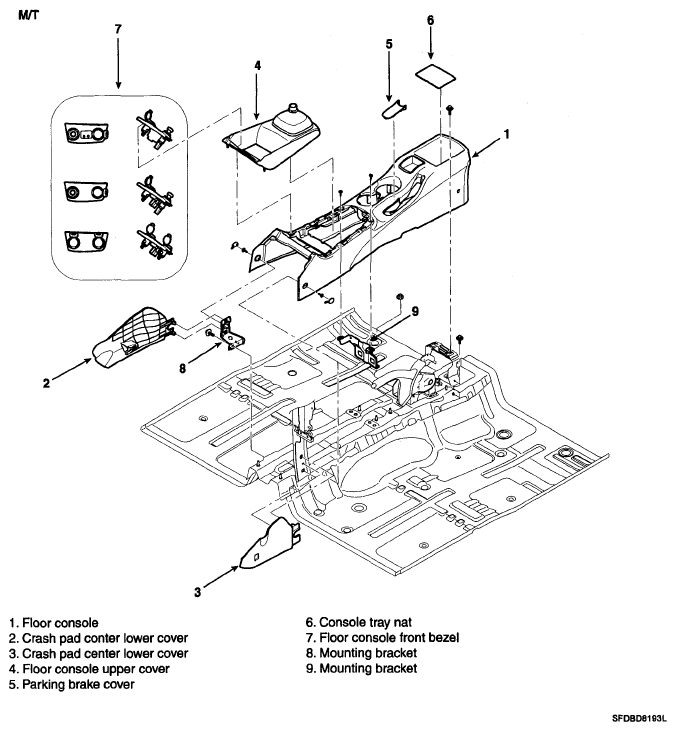

Fig 1: Identifying Console Components - MT
Courtesy of HYUNDAI MOTOR CO.

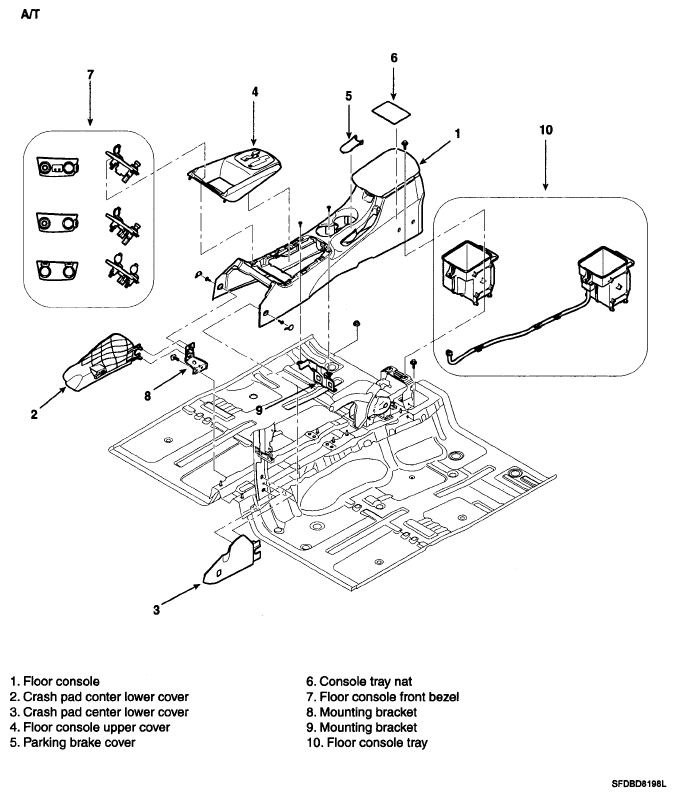

Fig 2: Identifying Console Components - AT
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
