Monitor Scantool Data

1. Check transponder and ECU status
   1. IGN "ON" & Engine "OFF" with key intended to register
   2. Monitor the "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameter on the Scantool.

      Specification  : 'LEARNT'

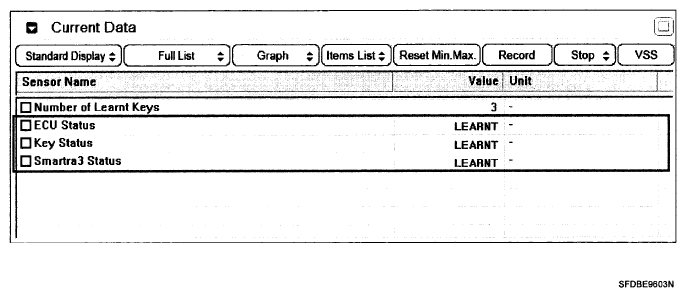

      Fig 1: Current Data Chart

      Courtesy of HYUNDAI MOTOR CO.
   3. Is the measured voltage within specifications?

   YES

   • Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Go to Check transponder procedure
2. Check transponder
   1. IGN "ON" & Engine "OFF"
   2. Neutralize PCM and Register transponder key by scantool.
      NOTE: Pin code is required to Neutralize PCM and to Register transponder key
   3. Are Neutralizing and Registering completed normally?

YES

• Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

• Substitute with a known good transponder and check for proper operation. If the problem is corrected, replace transponder and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
