C terminal Circuit Inspection

  1. With ignition OFF, disconnect alternator connector.
  2. IG KEY "ON"&ENG "OFF".
  3. Measure voltage between C terminal of the alternator harness connector and chassis ground.

    Specification:  Approx. 0.8V

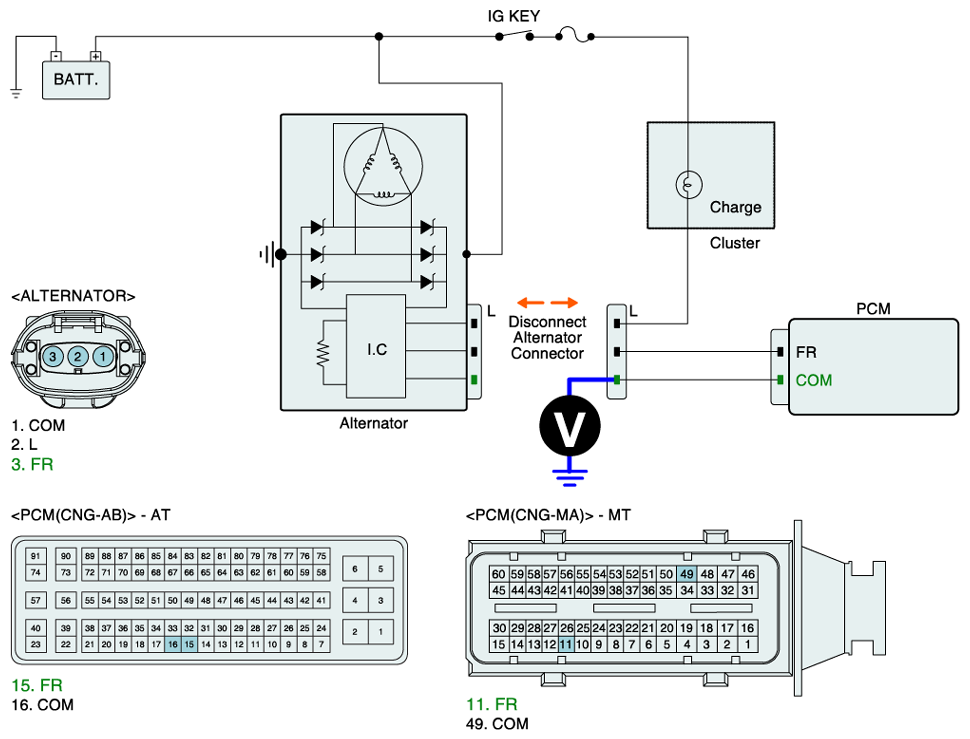

    Fig 1: Measuring Voltage Between C Terminal Of Alternator Connector And Chassis Ground.
    G07272634Courtesy of HYUNDAI MOTOR CO.
  4. Is voltage within the specification?

    YES

    Go to "COMPONENT INSPECTION " procedure.

    NO

    Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
