Floor Console Replacement: [A/T]

CAUTION:

A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

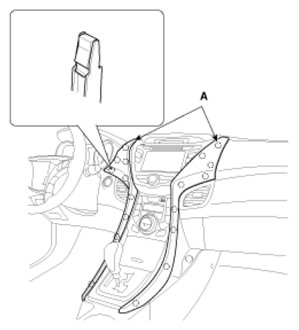

Using a screwdriver or remover, remove the crash pad center garnish (A).

Fig 1: Crash Pad Center Garnish
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver or remover, remove the gear knob cover (A).

Fig 2: Gear Knob Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the lock pin (B).
Remove the gear knob (A).

Fig 3: Gear Knob
Courtesy of HYUNDAI MOTOR CO.

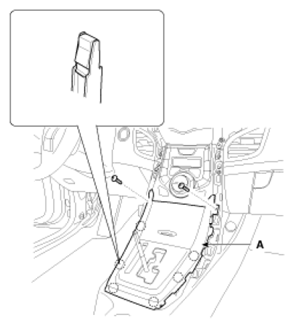

After loosening the mounting screws, remove the console upper cover (A).

Fig 4: Console Upper Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connectors (A).

Fig 5: Connectors
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver or remover, remove the parking brake cover (A).

Fig 6: Parking Brake Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the console tray mat (A).

Fig 7: Console Tray Mat
Courtesy of HYUNDAI MOTOR CO.

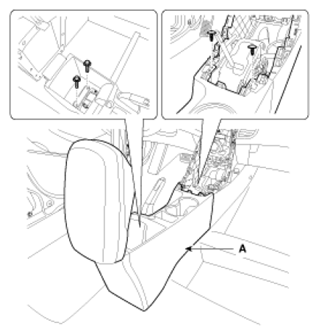

After loosening the mounting screws and bolts, then remove the floor console assembly (A).

Fig 8: Floor Console Assembly
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting screw, nut, clip, then remove the console side cover (A).

Fig 9: Console Side Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

Fig 10: Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
