Body Dimensions
>>
Interior
>>
Body Repair
>>
Interior D
Interior D

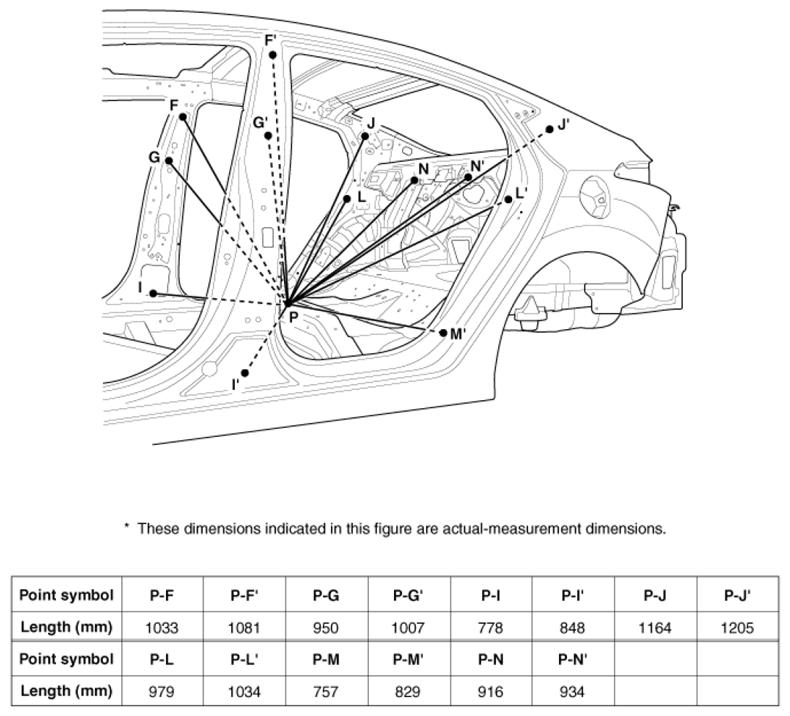

Fig 1: Identifying Interior D Dimensions (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

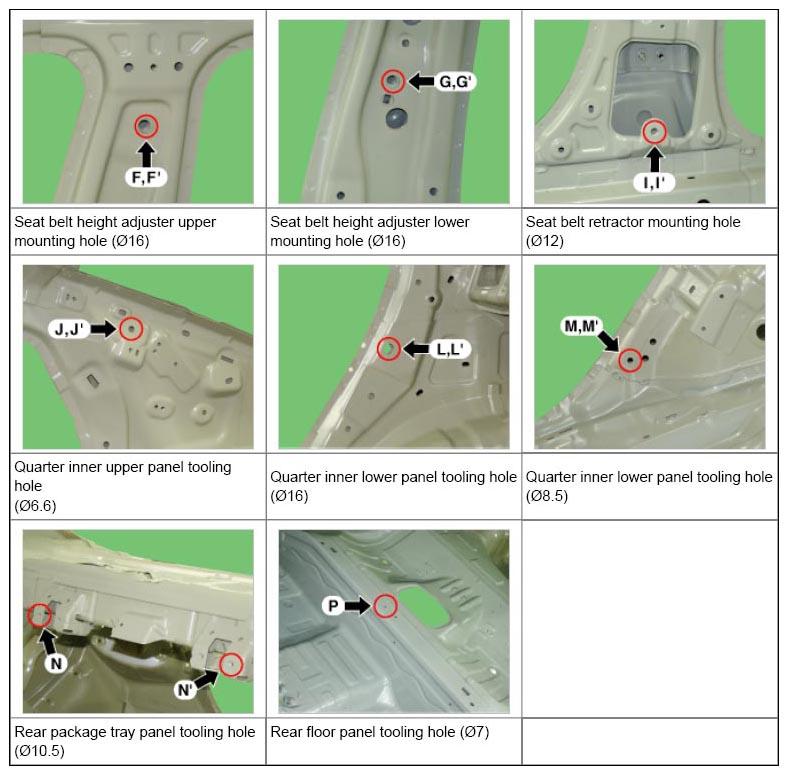

Fig 2: Identifying Interior D Dimensions (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
