Interior A

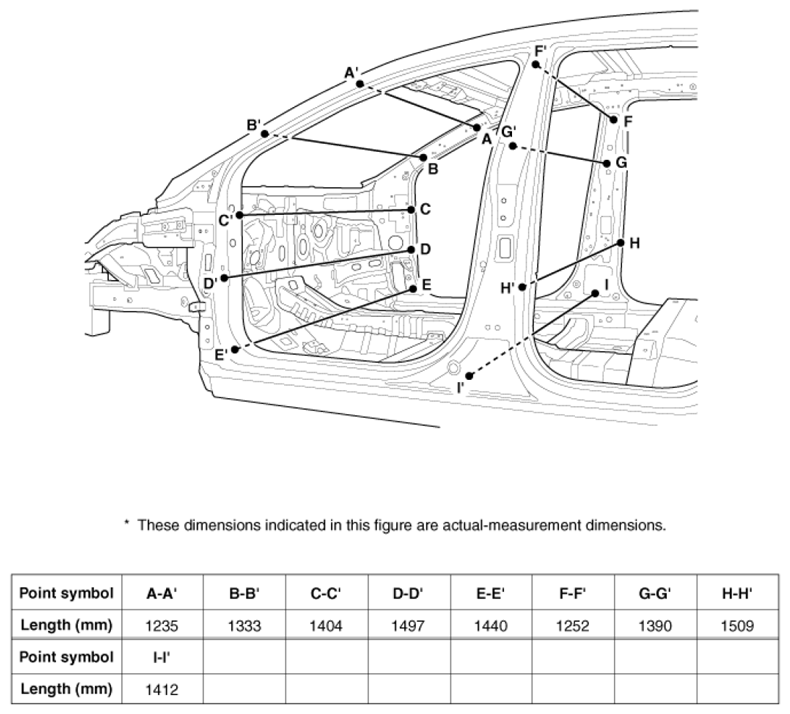

Fig 1: Identifying Interior A Dimensions (1 Of 2)

G07273051

Courtesy of HYUNDAI MOTOR CO.

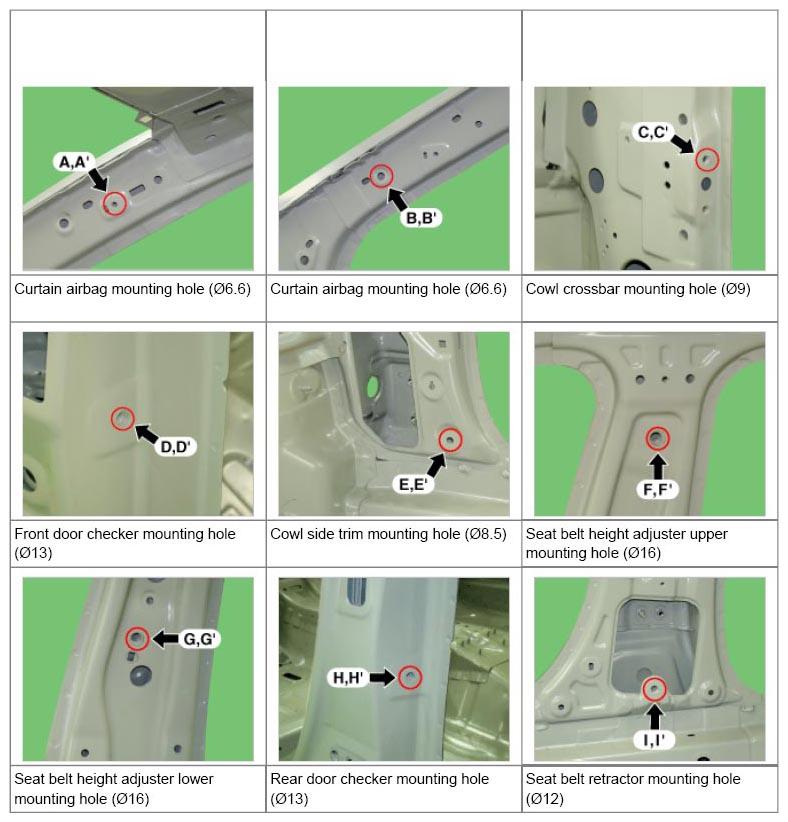

Fig 2: Identifying Interior A Dimensions (2 Of 2)

G07273063

Courtesy of HYUNDAI MOTOR CO.
