Front Body C
Front Body C

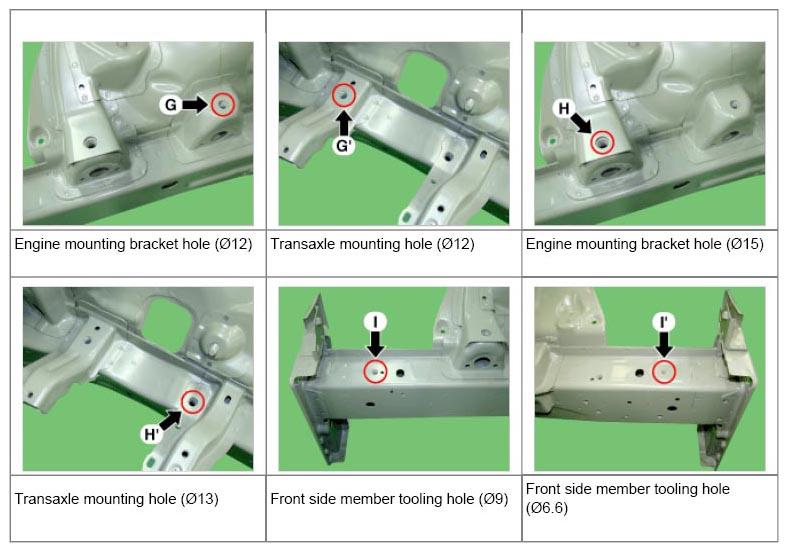

Fig 1: Identifying Front Body C Dimensions (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

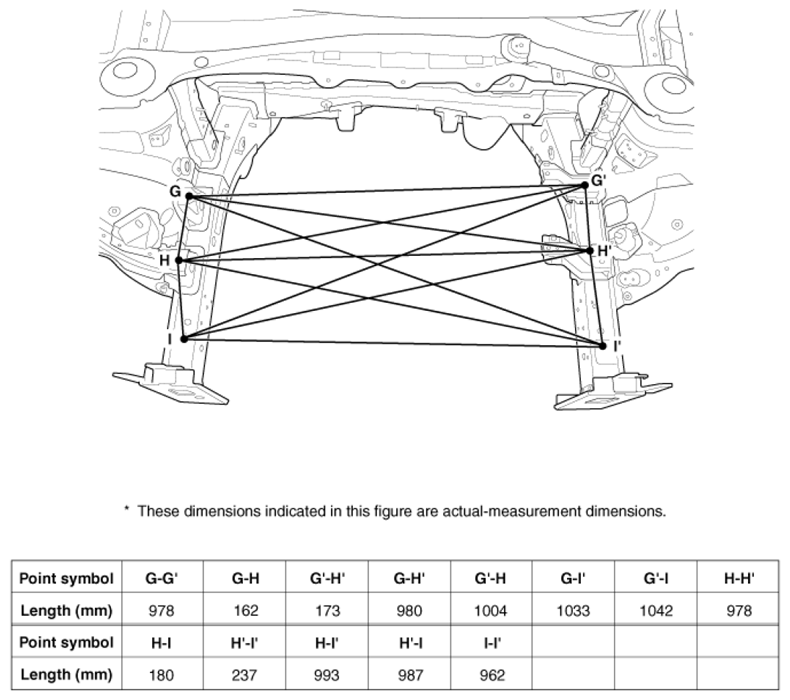

Fig 2: Identifying Front Body C Dimensions (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
