Front Body A

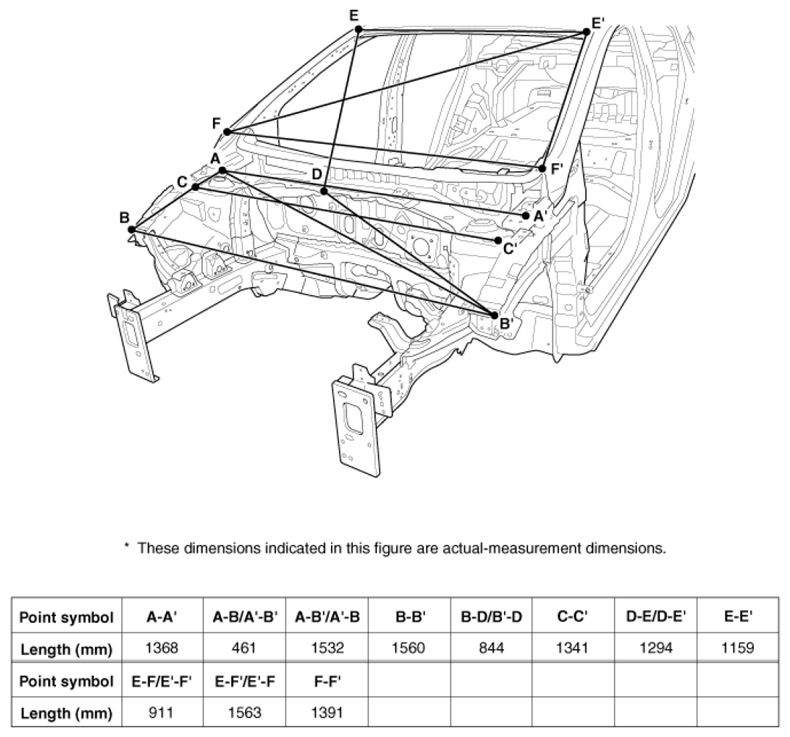

Fig 1: Identifying Front Body A Dimensions (1 Of 2)

G07273046

Courtesy of HYUNDAI MOTOR CO.

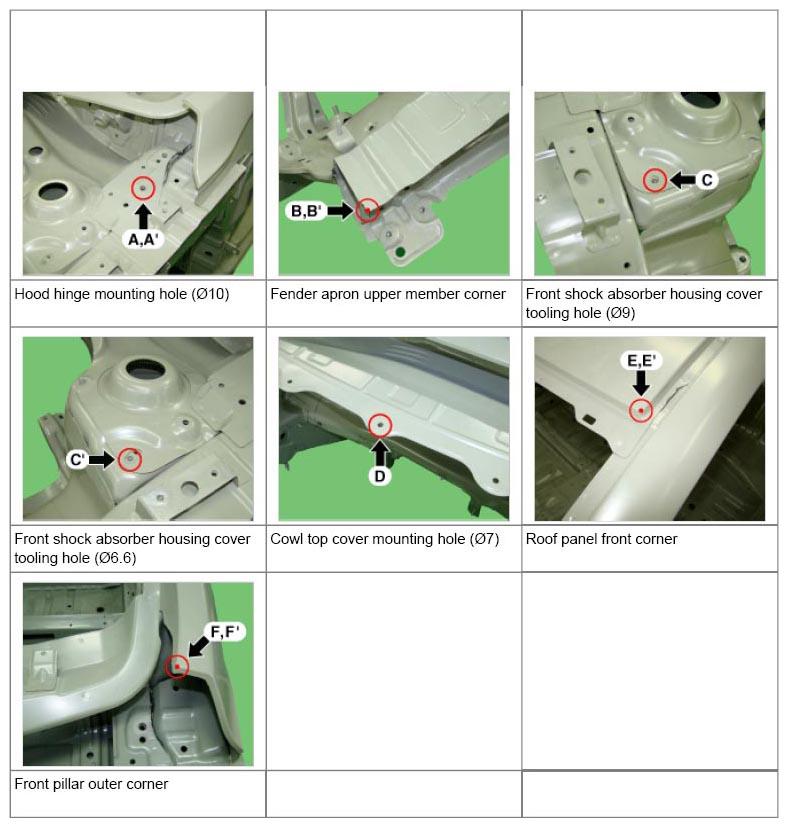

Fig 2: Identifying Front Body A Dimensions (2 Of 2)

G07273058

Courtesy of HYUNDAI MOTOR CO.
