Repair Procedures: Inspection

  1. Disconnect the back up lamp switch connector(A).

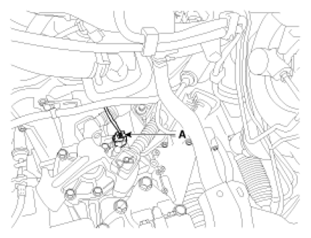

    Fig 1: Identifying Back Up Lamp Switch Connector
    G07264220Courtesy of HYUNDAI MOTOR CO.
  2. Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.
  3. If necessary, repair or replace the backup lamp switch.

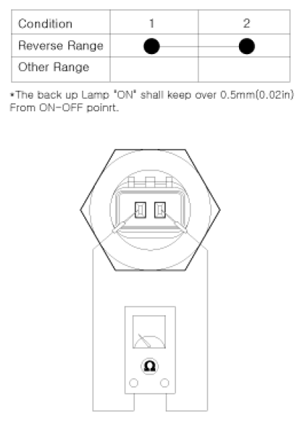

    Fig 2: Back Up Lamp Switch Connector Continuity Chart
    G07264221Courtesy of HYUNDAI MOTOR CO.
