Home >> Hyundai >> 2012 >> Elantra GLS, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System Diagnosis >> DTC P0706: Transmission Range Sensor Circuit Range/Performance >> Scantool Diagnostics >> Monitor GDS Data

Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF".
  3. Select "Current Data" mode and monitor "Inhibitor switch" parameter.
  4. Change a shift lever from P-range to D-range.
    Fig 1: Scantool Display - Current Data (P Range)
    G07257657Courtesy of HYUNDAI MOTOR CO.

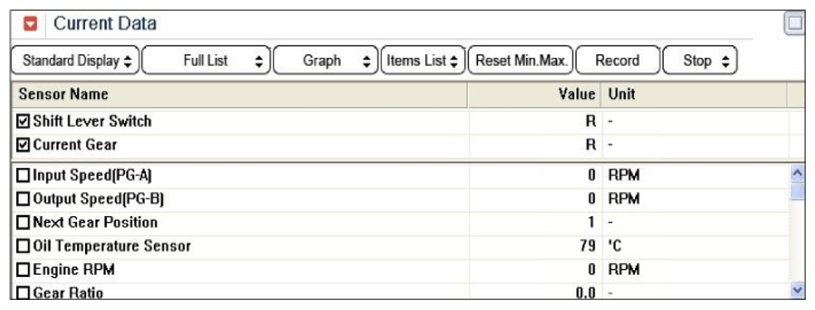

    Fig 2: Scantool Display - Current Data (R Range)
    G07257658Courtesy of HYUNDAI MOTOR CO.

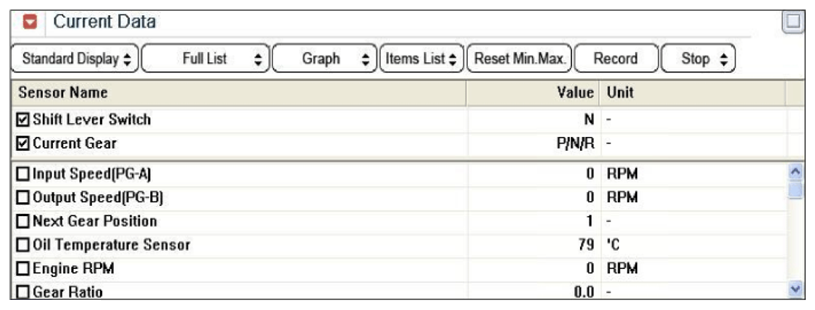

    Fig 3: Scantool Display - Current Data (N Range)
    G07257659Courtesy of HYUNDAI MOTOR CO.

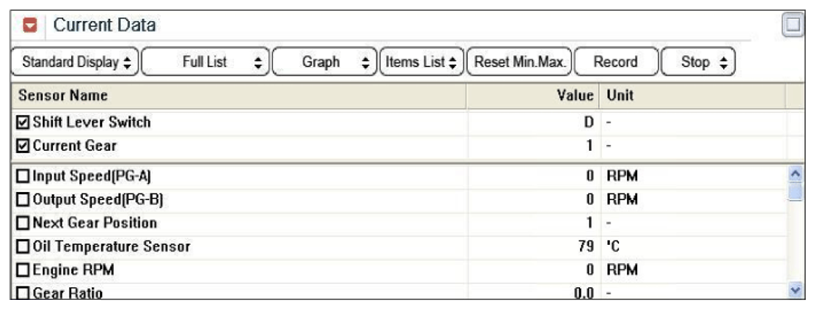

    Fig 4: Scantool Display - Current Data (D Range)
    G07257660Courtesy of HYUNDAI MOTOR CO.
  5. Is the Inhibitor switch value changed in specification?

    YES

    • Fault is intermittent caused by poor contact of PCM and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION VEHICLE REPAIR " procedure.
