Signal Waveform&Data

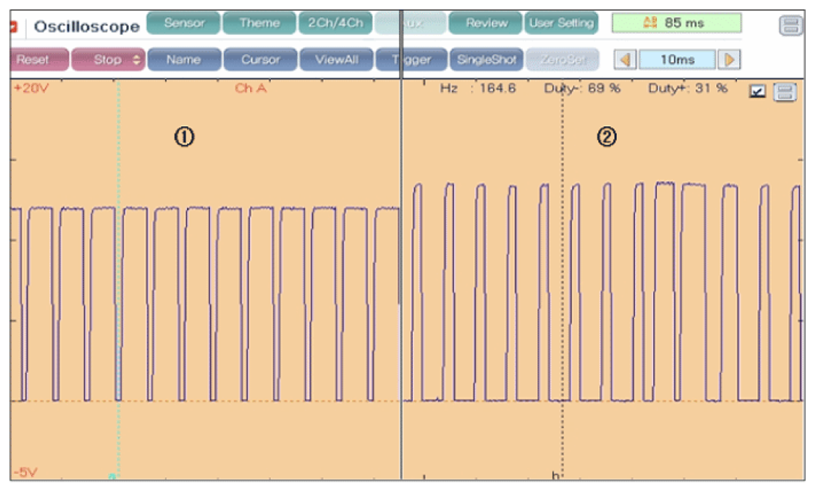

Fig 1: Screen Display - Signal Waveform (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

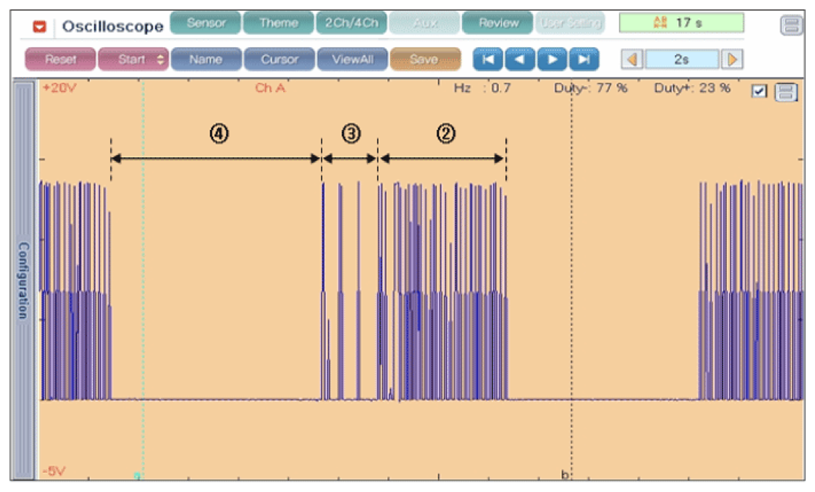

Fig 2: Screen Display - Signal Waveform (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.

(1) Normal waveform with IG ON

(2) Normal waveform with Idle and no electrical load

(3) Normal waveform with Idle and part electrical load

(4) Normal waveform with Idle and full electrical load (A/C, Defrost, Head Lamp, Repeater, Audio, etc)
