Trunk lid open switch

  1. Disconnect the negative(-) battery terminal.
  2. Remove the trunk door trim.

    (Refer to the TRUNK TRIM )

  3. Disconnect the trunk lid open switch connector (A).

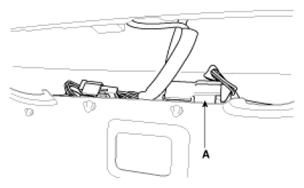

    Fig 1: Trunk Lid Open Switch Connector
    G07256536Courtesy of HYUNDAI MOTOR CO.
  4. Remove the trunk outside handle(A) after pressing the clips.
    Fig 2: Trunk Outside Handle Clips
    G07256537Courtesy of HYUNDAI MOTOR CO.

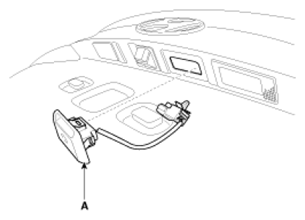

    Fig 3: Trunk Outside Handle
    G07256538Courtesy of HYUNDAI MOTOR CO.
