Trunk Lid Open Switch

  1. Check for continuity between the Trunk lid open switch terminals.

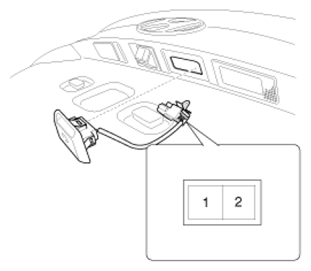

    Fig 1: Trunk Lid Open Switch Connector Terminals
    G07256527Courtesy of HYUNDAI MOTOR CO.
  2. If continuity is not specified, inspect the switch
Fig 2: Trunk Lid Open Switch Continuity Chart
G07256528Courtesy of HYUNDAI MOTOR CO.
