Antenna Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Antenna Status Check".

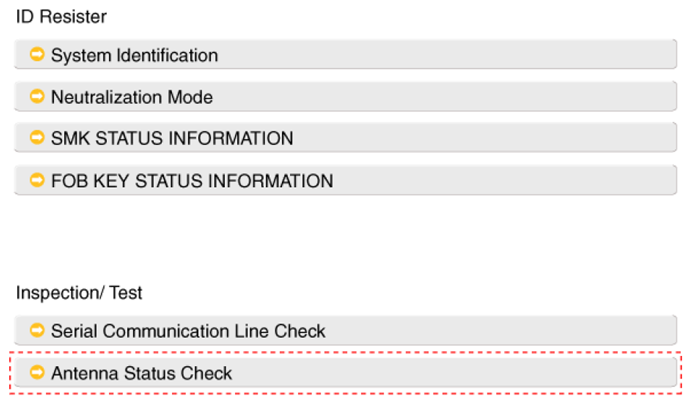

Fig 1: Scantool Display - ID Register
Courtesy of HYUNDAI MOTOR CO.
After IG ON, select the "Antenna Status Check".

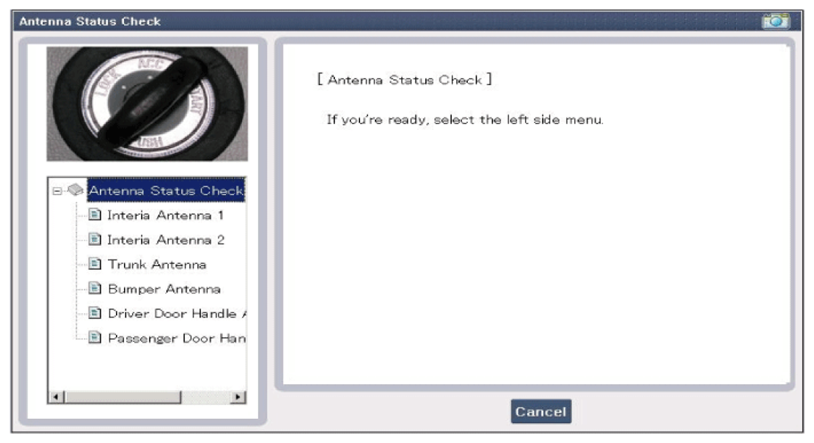

Fig 2: Scantool Display - Antenna Status Check
Courtesy of HYUNDAI MOTOR CO.
Set the smart key near the related antenna and operate it with a GDS.

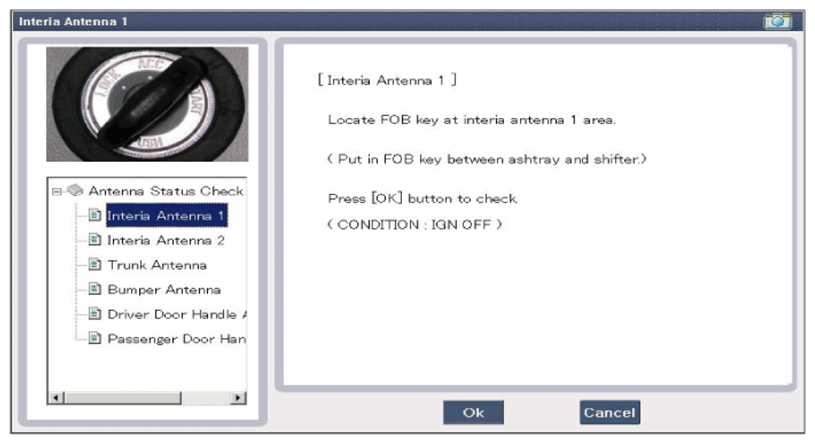

Fig 3: Scantool Display - Interia Antenna 1
Courtesy of HYUNDAI MOTOR CO.

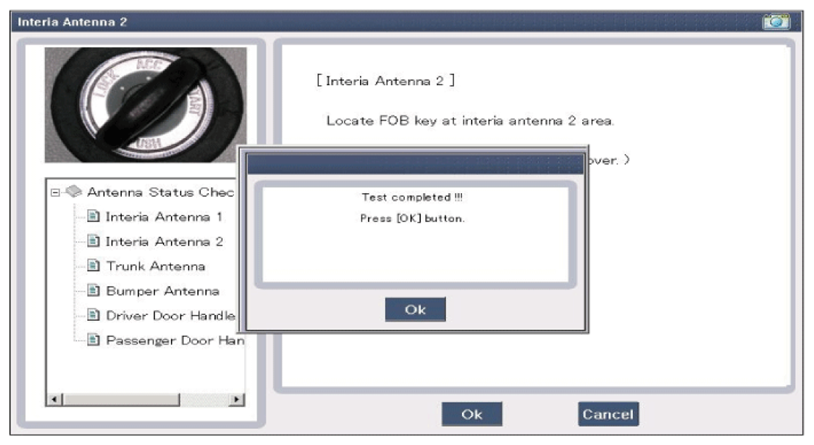

Fig 4: Scantool Display - Interia Antenna 2
Courtesy of HYUNDAI MOTOR CO.
If the smart key runs normal, the related antenna, smart key(transmission, reception) and exterior receiver are normal.
Antenna status
1. INTERIOR Antenna 1
2. INTERIOR Antenna 2
3. Trunk antenna
4. BUMPER/Antenna
5. DRV_DR Antenna
6. AST_DR Antenna
