Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to the "CRASH PAD ")

  3. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening the bolt.

    [USA]

    Fig 1: Identifying SMARTRA Unit
    G07256937Courtesy of HYUNDAI MOTOR CO.
  4. Remove the immobilizer unit from the bracket (B).
    NOTE:
    • Be careful not to damage the SMARTRA unit.

    [CANADA]

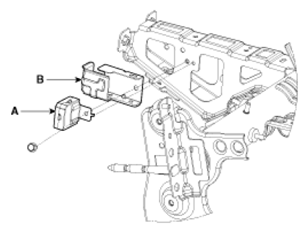

    Fig 2: Identifying Immobilizer Unit Bracket
    G07256938Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal procedure.
