Repair procedures: Removal

  1. Remove the crash pad garnish.

    (Refer to the "CRASH PAD ")

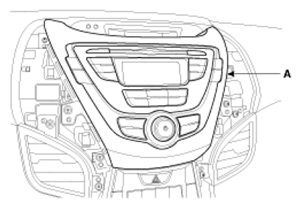

  2. Remove the center fascia panel (A) with loosening screws.
    Fig 1: Center Fascia Panel
    G07264979Courtesy of HYUNDAI MOTOR CO.
  3. Remove the connector (A).
    Fig 2: Center Fascia Panel Connector
    G07264980Courtesy of HYUNDAI MOTOR CO.
  4. Remove the audio head unit (A) with loosening 4 screws.
    Fig 3: Audio Head Unit
    G07264981Courtesy of HYUNDAI MOTOR CO.
  5. Remove the audio with disconnecting audio connectors and antenna cables (A).
    Fig 4: Antenna Cables
    G07264982Courtesy of HYUNDAI MOTOR CO.
    NOTE: If the CD does not eject, do not attempt to remove it because the audio unit may be damaged. Contact an authorized dealership for assistance.
