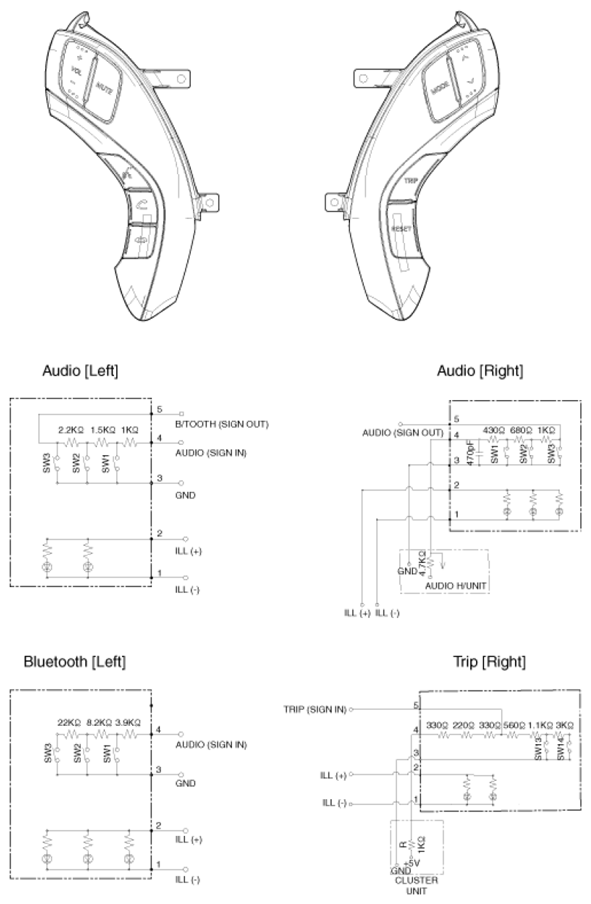

Circuit Diagram
CONNECTOR REFERENCE
| Audio connector (Left) | Audio connector (Right) | ||
|---|---|---|---|
| Pin | Description | Pin | Description |
| 1 | illumination (-) | 1 | illumination (-) |
| 2 | illumination (+) | 2 | illumination (+) |
| 3 | Audio (-) | 3 | Audio (-) |
| 4 | Audio (Signal IN) | 4 | Audio (+) |
| 5 | Audio (Signal OUT) | 3 | Audio (Signal OUT) |
| 6 | - | 6 | - |
| 7 | - | 7 | - |
| 8 | - | 8 | - |
CONNECTOR REFERENCE
| Bluetooth connector (Left) | Trip connector (Right) | ||
|---|---|---|---|
| Pin | Description | Pin | Description |
| 1 | illumination (-) | 1 | illumination (-) |
| 2 | illumination (+) | 2 | illumination (+) |
| 3 | Audio (-) | 3 | Trip (-) |
| 4 | Audio (Signal IN) | 4 | Trip (+) |
| 5 | - | 5 | Trip (Signal IN) |
| 6 | - | 6 | - |
