Home >> Hyundai >> 2012 >> Elantra GLS, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio System >> Components and Components Location >> Components

Components and Components Location: Components

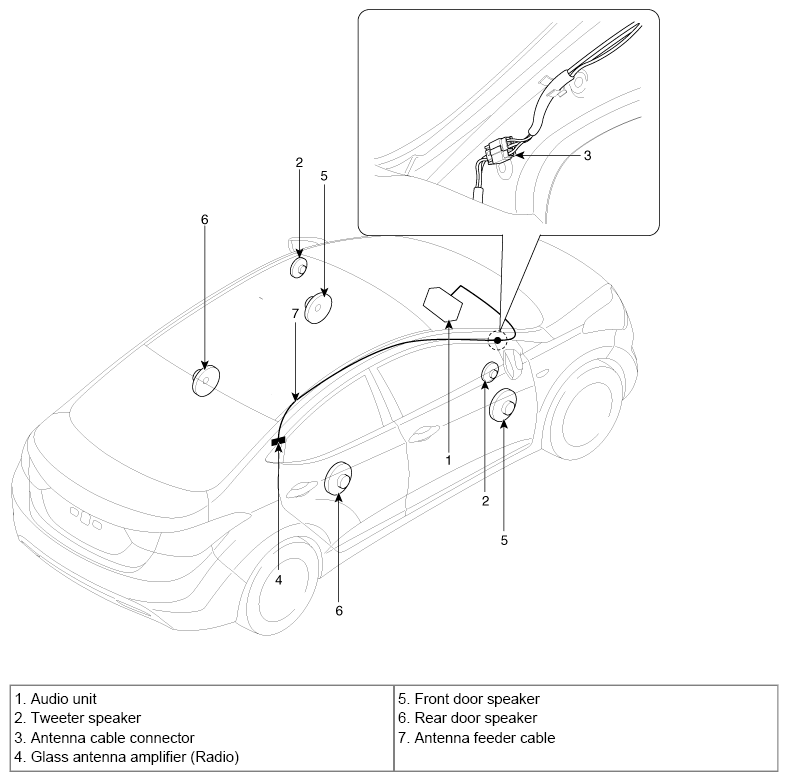

Fig 1: Audio Unit Components Location

G07264976

Courtesy of HYUNDAI MOTOR CO.
